  6. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

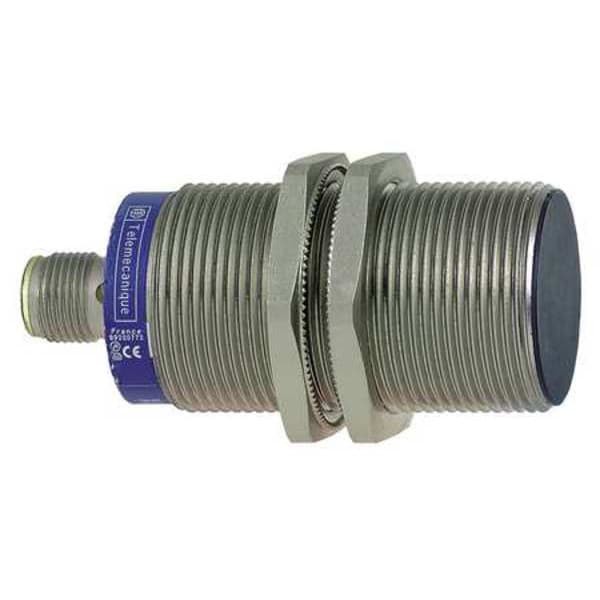

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded XS530B1PAM12 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # XS530B1PAM12

  • Zoro # G4629843

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
55 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS530B1PAM12
Zoro #
G4629843
UPC #
785901505204
Country of Origin
Multiple

Dimensions

Length
55 mm
Overall Height
55 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
1,000 Hz
IP Rating
IP67, IP69K
Standards
CE, CSA, RoHS, UL Listed
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Electrical Connection
M12
Supply Voltage Limits
10-36 V DC
Application
general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery
0.7 ms
Maximum Delay First Up
10 ms
Maximum Voltage Drop
<2 V closed)
Differential Travel
1...15% of Sr
Maximum Delay Response
0.3 ms
Series
XS5
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Body Type
fixed
Switching Frequency
1,000 Hz
Style
Cylindrical, Inductive
Body Finish
Nickel Plated
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Sensing Distance - Maximum
10 mm
Electrical Installation Type
Direct Connector
NEMA Enclosure Rating
4X
Output Circuit Contact Form
NO
Body Material
Brass
Output Circuit Number of Wires
3
Output Circuit Type
PNP
Number of Pins
4
Operating Temperature - Minimum
-13 Degrees F
Sensing Face Shielding
Shielded
AC Voltage Rating
Not Rated
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
200 mA
DC Voltage Rating
12-24V DC
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 55 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
