  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Shielded

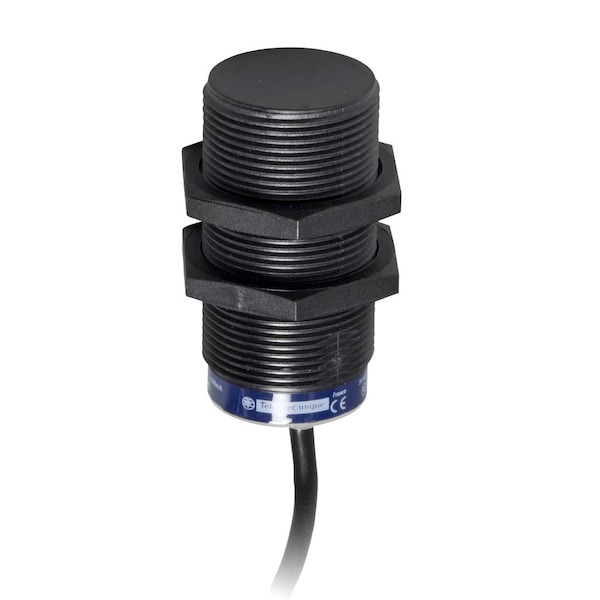

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Shielded XS4P30PA340 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS4P30PA340

  • Zoro # G0564037

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
43 mm
Depth
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P30PA340
Zoro #
G0564037
UPC #
785901913078
Country of Origin
France

Dimensions

Length
43 mm
Depth
30 mm
Overall Height
43 mm
Cable Length
2 m
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
IP Rating
IP68
Standards
CE, CSA, Ecolab, UL Listed
Electrical Connection
Bare Wire
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
general purpose
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
10 ms
Differential Travel
1...15% of Sr
Series
XS4
Maximum Delay Recovery
0.7 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Body Type
fixed
Maximum Delay Response
0.3 ms
Switching Frequency
1,000 Hz
Body Material
PPS
AC Voltage Rating
Not Rated
Operating Temperature - Maximum
158 Degrees F
Electrical Installation Type
Prewired Cable
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
Sensing Face Shielding
Shielded
Output Circuit Type
PNP
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
12-24V DC
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NO
Sensing Distance - Maximum
15 mm

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP68, Standards CE, CSA, Ecolab, UL Listed
