Shop SIEMENS

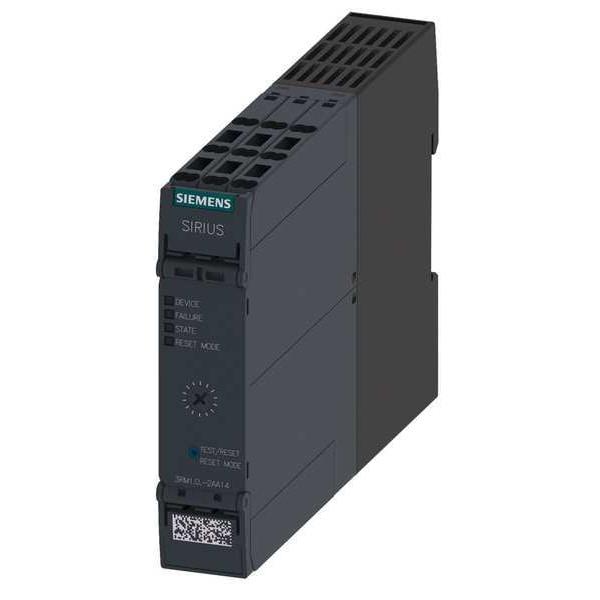

Compact Magnetic Motor Starter, Reversing, 1NC/1NO, 110V-240V AC/DC, 3 P, Quick Connect

  • Mfr # 3RM12012AA14

  • Zoro # G6193302

product price:
$
242.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V-240V AC/DC
Number of Poles
3
Full Load Current - Inductive
0.5 A
Reversing Capability
Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3RM12012AA14
Zoro #
G6193302
UPC #
887621168049
Country of Origin
Germany

Dimensions

Overall Height
6.58 in
Overall Depth
5.57 in
Overall Width
1.42 in

Details

Item
Compact Magnetic Motor Starter
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110V-240V AC/DC
Number of Poles
3
Full Load Current - Inductive
0.5 A
Reversing Capability
Reversing
Terminal Connection Type
Spring Loaded
Number of Auxillary Contacts
2
Standards
CCC, CE, CSA, EAC, RCM, UL Listed
Accessory Group
Auxiliary Contacts, Manual Starter Accessory
Features
Spring Loaded Connection
Mounting Postion
Horizontal, Vertical
Includes Pilot Light
Yes
Mechanical Operating Durability
30,000,000
Maximum Operating Temperature
140 Degrees F
IP Rating
IP20
Resistance Properties
Shock Resistant, Vibration Resistant
Maximum Overload Relay Current Setting
0.5 A
Overload Protection Type
Electronic
Maximum Voltage Rating
480V AC
Minimum Overload Relay Current Setting
0.1 A
Trip Class
10A
Mounting Style
DIN Rail
Minimum Operating Temperature
-13 Degrees F
Series
3RM1
Response Time
60 to 90 msec (ON-Delay Time), 60 to 90 msec (OFF-Delay Time)
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Current AC
0.5 A
Includes Auxiliary Contacts
Yes
Starter Style
IEC

Description

Compact Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 0.5 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.1 A, Trip Class 10A, Series 3RM1, Number of Poles 3, Number of Auxillary Contacts 2, Mounting Style DIN Rail, Auxiliary Contact Form 1NO/1NC, Starter Style IEC, Reversing Capability Reversing, Maximum Voltage Rating 480V AC, Coil Voltage 110-230V AC, Current AC 0.5 A, NEMA Enclosure Rating No Enclosure

Restrictions

Hazardous material
