  6. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Unshielded

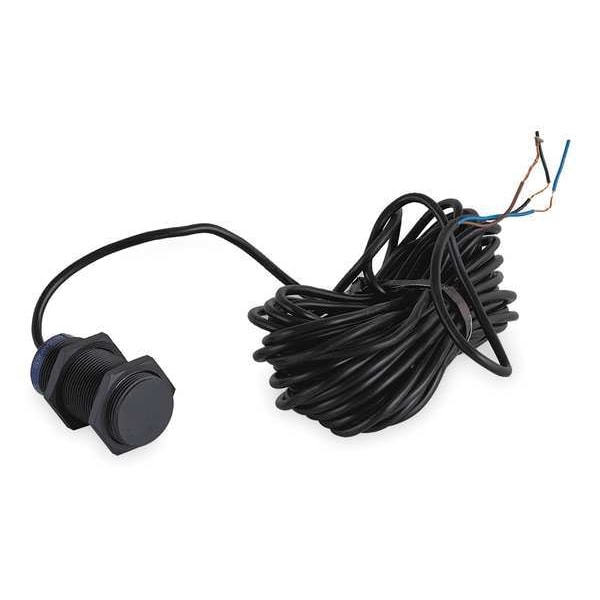

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Unshielded XS230AAPAL2 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., PPS, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # XS230AAPAL2

  • Zoro # G2986907

product price:  $78.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Body Material
PPS
Overall Diameter
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS230AAPAL2
Zoro #
G2986907
UPC #
785901876830
Country of Origin
France

Dimensions

Overall Diameter
30 mm
Cable Length
2 m
Length
41 mm
Overall Height
60 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Body Material
PPS
Proximity Sensor Power Requirement
12 to 24V DC
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Distance - Maximum
40 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-48V DC
Output Circuit Contact Form
NO
Standards
CCC, CE, CSA, RoHS, UL Listed
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
500 Hz
IP Rating
IP68, IP69K
Max. Current Load
200mA
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 185 Degrees F
Electrical Connection
Bare Wire
Maximum Delay Response
0.6 ms
Supply Voltage Limits
10-58 V DC
Storage Temp. Range
-40-85 °C
Application
food and beverage
Body Type
fixed
Series
XS2
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery
1.4 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
10 ms
Differential Travel
1...15% of Sr
Switching Capacity
<= 200 mA overload and short-circuit protection
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Prewired Cable
Sensing Face Shielding
Unshielded
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
500 Hz
Sensing Distance - Minimum
15 mm
Load Current - Maximum
200 mA
Body Finish
Nickel Plated
NEMA Enclosure Rating
4X

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 185 Degrees F, Max. Current Load 200mA
