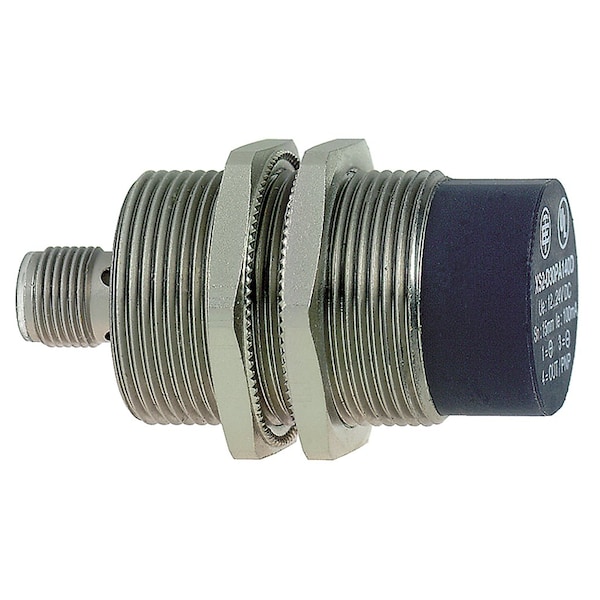

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 36 mm Dia., Brass, M12, 3 Wires XS630B4PAM12 - main

Cylindrical, Inductive Proximity Sensor, 36 mm Dia., Brass, M12, 3 Wires

  • Mfr # XS630B4PAM12

  • Zoro # G0564280

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
74 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS630B4PAM12
Zoro #
G0564280
UPC #
785901835790
Country of Origin
France

Dimensions

Length
74 mm
Overall Height
74 mm
Overall Diameter
36 mm

Details

Item
Proximity Sensor
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz DC
Operating Temp. Range
-25 to 70 Degrees C
IP Rating
IP67, IP69K
Standards
CE, CSA, E2, UL Listed
Electrical Connection
M12
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
mobile equipment; general purpose
Differential Travel
1...15% of Sr
Supply Voltage Limits
10-58 V DC
Storage Temp. Range
-40-85 °C
Series
XS6
Maximum Delay Recovery
1.4 ms
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
10 ms
Maximum Delay Response
0.6 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Sensing Distance - Minimum
15 mm
Operating Temperature - Maximum
158 Degrees F
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
500 Hz
Sensing Distance - Maximum
40 mm
Output Circuit Contact Form
NO
Electrical Installation Type
Direct Connector
Output Circuit Type
PNP
Body Material
Brass
Style
Cylindrical, Inductive
Number of Pins
4
DC Voltage Rating
12-48V DC
Output Circuit Number of Wires
3
AC Voltage Rating
Not Rated
Body Finish
Nickel Plated
Operating Temperature - Minimum
-13 Degrees F

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, IP69K, Standards CE, CSA, E2, UL Listed
