  11. Cylindrical, Inductive Proximity Sensor, 5 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

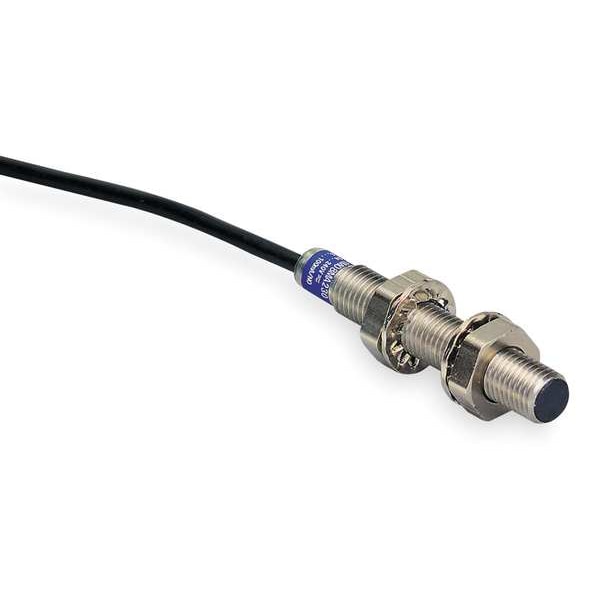

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 5 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded XS1N05PA310 - main

Cylindrical, Inductive Proximity Sensor, 5 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # XS1N05PA310

  • Zoro # G7467162

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 0.8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
5 to 24V DC
Length
28 mm
Proximity Sensor Electrical Connection
2m Cable
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS1N05PA310
Zoro #
G7467162
UPC #
785901648697
Country of Origin
France

Dimensions

Length
28 mm
Cable Length
2 m
Overall Diameter
5 mm
Overall Height
28 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 0.8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
5 to 24V DC
Proximity Sensor Electrical Connection
2m Cable
Basic Proximity Sensor Case Material
Metal
Shielded / Unshielded
Shielded
Proximity Sensor Operating Frequency
5,000 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP67
Max. Current Load
100mA
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Electrical Connection
Bare Wire
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 100 mA overload and short-circuit protection
Maximum Delay Response
1 ms
Storage Temp. Range
-40-85 °C
Series
XS1
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
5 ms
Application
general purpose
Supply Voltage Limits
5-30 V DC
Maximum Delay Recovery
1 ms
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
NO
Includes Indicator Lights
Indicator Lights Included
Body Finish
Nickel Plated
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
PNP
AC Voltage Rating
Not Rated
Switching Frequency
5,000 Hz
Sensing Distance - Maximum
1 mm
Sensing Face Shielding
Shielded
Body Material
Brass
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
5-24V DC
Output Circuit Number of Wires
3
Style
Cylindrical
Load Current - Maximum
100 mA

Description

Inductive Cylindrical Proximity Sensor, Inductive, 5 mm, Proximity Sensor Power Requirement 5 to 24V DC, Shielded, Proximity Sensor Operating Frequency 5,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 1 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Nickel Plated Brass, Length 28 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
