  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M8, 3 Wires, Unshielded

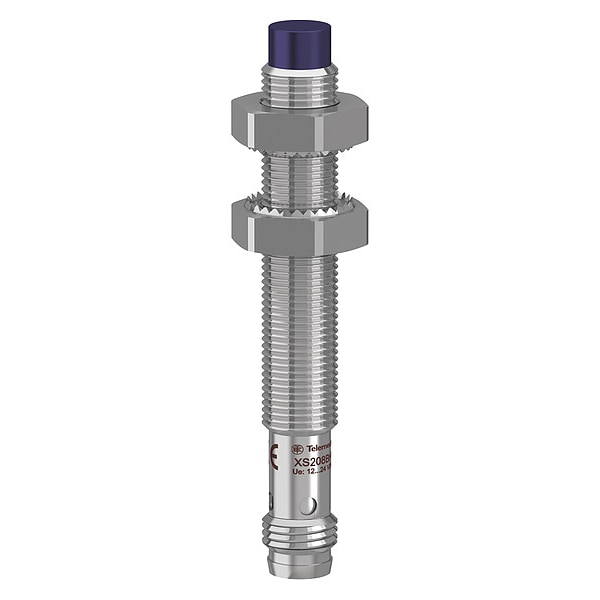

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M8, 3 Wires, Unshielded XS208BLPAM8 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M8, 3 Wires, Unshielded

  • Mfr # XS208BLPAM8

  • Zoro # G2528705

product price: $50.49
/ea

Key Features

Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
41 mm
Proximity Sensor Electrical Connection
3 Pin M8 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS208BLPAM8
Zoro #
G2528705
UPC #
785901704560
Country of Origin
Indonesia

Dimensions

Length
41 mm
Overall Height
53 mm
Overall Diameter
8 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
3 Pin M8 Connector
Proximity Sensor Operating Frequency
3,000 Hz
Max. Current Load
100mA
Standards
CE, CSA, RoHS, UL Listed
IP Rating
IP67
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
M8
Maximum Delay First Up
15 ms
Series
XS2
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Switching Capacity
<= 200 mA overload and short-circuit protection
Supply Voltage Limits
10-36 V DC
Application
general purpose
Maximum Delay Recovery
0.3 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Storage Temp. Range
-40-85 °C
Maximum Delay Response
5 ms
Body Finish
Nickel Plated
Switching Frequency
1,000 Hz
Sensing Distance - Maximum
3 mm
Sensing Face Shielding
Unshielded
Electrical Installation Type
Direct Connector
NEMA Enclosure Rating
4X
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
200 mA
DC Voltage Rating
12-24V DC
Style
Cylindrical, Inductive
Number of Pins
3
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
PNP
Operating Temperature - Maximum
158 Degrees F
Body Material
Brass
Output Circuit Number of Wires
3
Output Circuit Contact Form
NO

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 3,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2.5 mm, Proximity Sensor Electrical Connection 3 Pin M8 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
