  6. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M8, 3 Wires, Shielded

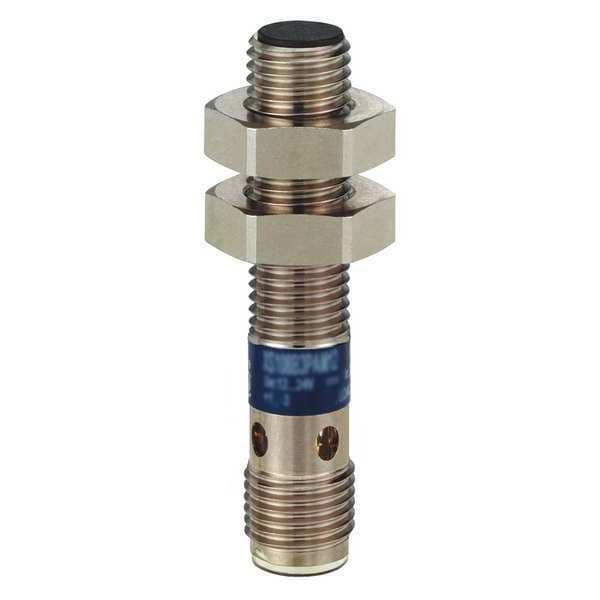

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M8, 3 Wires, Shielded XS108B3NAM8 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M8, 3 Wires, Shielded

  • Mfr # XS108B3NAM8

  • Zoro # G6800297

product price:  $83.45
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
42 mm
Proximity Sensor Electrical Connection
3 Pin M8 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS108B3NAM8
Zoro #
G6800297
UPC #
785901906377
Country of Origin
France

Dimensions

Length
42 mm
Overall Diameter
8 mm
Overall Height
42 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
3 Pin M8 Connector
Proximity Sensor Operating Frequency
2,500 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP65, IP67
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Max. Current Load
200mA
Standards
CE, CSA, RoHS, UL Listed
Electrical Connection
M8
Maximum Delay Response
0.2 ms
Maximum Delay First Up
10 ms
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2 V closed)
Series
XS1
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
<= 200 mA overload and short-circuit protection
Application
general purpose
Body Type
fixed
Maximum Delay Recovery
0.2 ms
Load Current - Maximum
200 mA
Switching Frequency
2,500 Hz
Body Finish
Nickel Plated
DC Voltage Rating
12-24V DC
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Output Circuit Type
NPN
Number of Pins
3
AC Voltage Rating
Not Rated
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
3 mm
Output Circuit Contact Form
NO
Output Circuit Number of Wires
3
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Body Stainless Steel Grade
303
Electrical Installation Type
Direct Connector
Body Material
Stainless Steel
Style
Cylindrical, Inductive
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 3 Pin M8 Connector, Output Mode NO, IP Rating IP65, IP67, Case Material 303 Stainless Steel, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
