Shop TELEMECANIQUE SENSORS

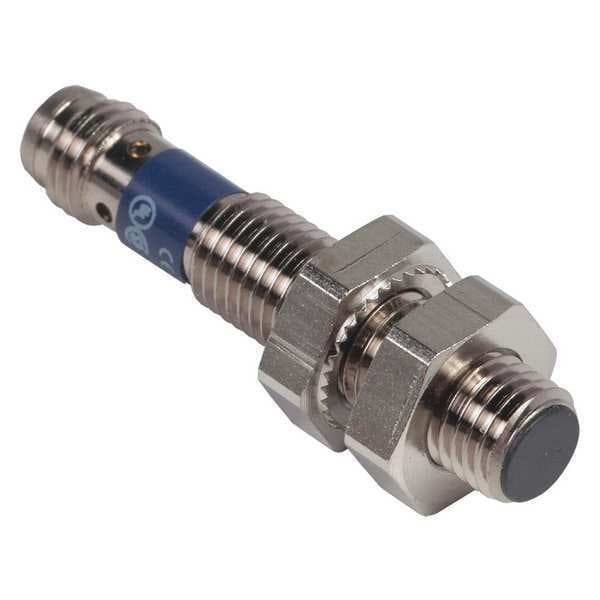

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M8, 3 Wires, Shielded

  • Mfr # XS108B3PBM8

  • Zoro # G6168495

product price:  $87.15
/ea

Key Features

Measurement Range
0 to 2 mm
Overall Diameter
8 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
12 to 24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS108B3PBM8
Zoro #
G6168495
UPC #
785901835110
Country of Origin
France

Dimensions

Overall Diameter
8 mm
Length
42 mm
Overall Height
42 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Body Material
Stainless Steel
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M8
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Shielded
Sensing Distance - Maximum
3 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NC
Standards
CE, CSA, RoHS, UL Listed
Proximity Sensor Electrical Connection
3 Pin M8 Connector
Proximity Sensor Operating Frequency
2,500 Hz
IP Rating
IP65, IP67
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Max. Current Load
200mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Maximum Delay First Up
10 ms
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS1
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Application
general purpose
Switching Capacity
<= 200 mA overload and short-circuit protection
Supply Voltage Limits
10-36 V DC
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.2 ms
Maximum Delay Recovery
0.2 ms
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Switching Frequency
2,500 Hz
Operating Temperature - Maximum
158 Degrees F
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
200 mA
Body Finish
Nickel Plated
Number of Pins
3
Body Stainless Steel Grade
303
Sensing Method
Inductive
Electrical Installation Type
Direct Connector

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 3 Pin M8 Connector, Output Mode NC, IP Rating IP65, IP67, Case Material 303 Stainless Steel, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
