Shop TELEMECANIQUE SENSORS

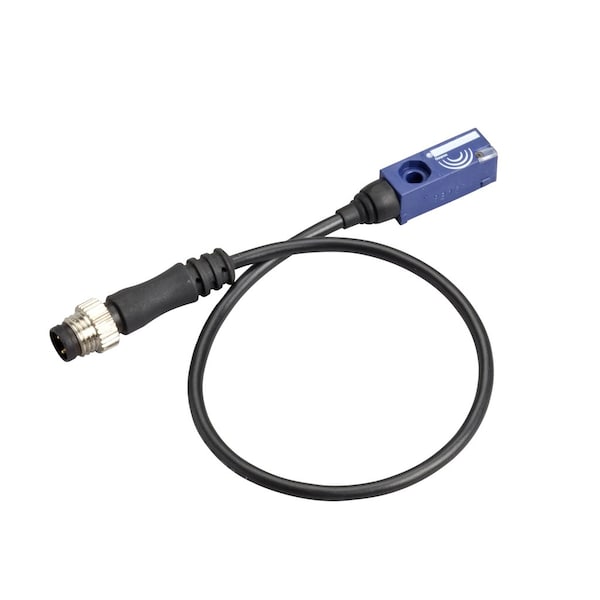

Inductive Proximity Sensor, PBT, M8, 3 Wires

  • Mfr # XS7J1A1PBL01M8

  • Zoro # G0130293

product price:
$
99.19
/ea

Key Features

Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS7J1A1PBL01M8
Zoro #
G0130293
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
22 mm
Width
8 mm
Depth
8 mm
Overall Height
22 mm
Cable Length
0.15 m

Details

Item
Proximity Sensor
Style
Inductive
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Body Material
PBT
Proximity Sensor Power Requirement
12 to 24V DC
Electrical Connection
M8
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Distance - Maximum
3 mm
Output Circuit Contact Form
NC
Standards
C-Tick, CE, REACH, RoHS
Proximity Sensor Electrical Connection
Remote Male Connector M8, 3 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP67
Features
18 months Warranty, Yellow LED Output Indication
Application
general purpose
Series
XS7
Maximum Voltage Drop
<2 V closed)
Maximum Delay Response
0.1 ms
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Maximum Delay Recovery
0.1 ms
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Maximum Delay First Up
5 ms
Switching Frequency
2,000 Hz
Load Current - Maximum
10 mA
Sensing Method
Inductive
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Output Circuit Voltage - Maximum
24 V DC
Number of Pins
3
Output Circuit Current - Maximum
100 mA
Sensing Face Shielding
Shielded
Electrical Installation Type
Prewired Pigtails
DC Voltage Rating
12-24V DC
Output Circuit Voltage - Minimum
12 V DC

Description

Inductive Proximity Sensor, IP Rating IP67, Standards C-Tick, CE, REACH, RoHS
