  11. Cylindrical, Inductive Proximity Sensor, PPS, M12, 3 Wires

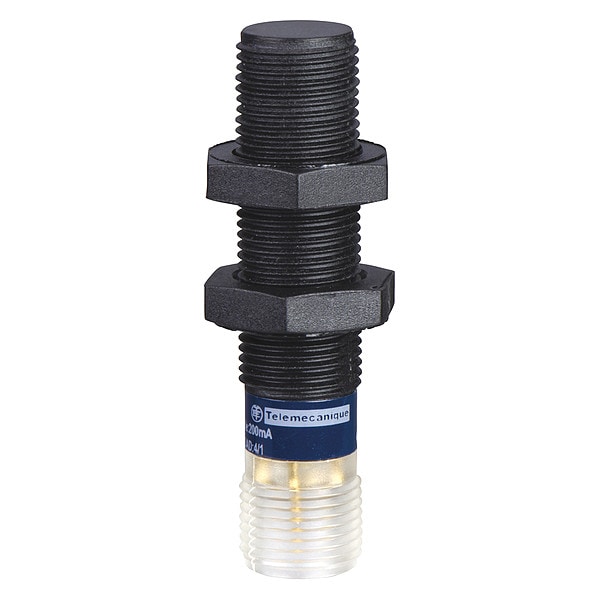

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, PPS, M12, 3 Wires XS4P12PA340D - main

Cylindrical, Inductive Proximity Sensor, PPS, M12, 3 Wires

  • Mfr # XS4P12PA340D

  • Zoro # G0564247

product price: $64.59
/ea

Key Features

Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
48 mm
Depth
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P12PA340D
Zoro #
G0564247
UPC #
785901912972
Country of Origin
France

Dimensions

Length
48 mm
Depth
18 mm
Overall Height
48 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
Electrical Connection
M12
Standards
CE, CSA, REACH, RoHS, UL Listed
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
IP Rating
IP67
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Supply Voltage Limits
10-36 V DC
Application
general purpose
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay Response
0.1 ms
Series
XS4
Maximum Delay Recovery
0.1 ms
Maximum Voltage Drop
<2 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Body Type
fixed
Sensing Method
Inductive
Switching Frequency
5,000 Hz
Sensing Distance - Maximum
4 mm
Load Current - Maximum
10 mA
Operating Temperature - Maximum
158 Degrees F
Features
18 months Warranty, Yellow LED Output Indication
Output Circuit Contact Form
NO
Body Material
PPS
Output Circuit Type
PNP
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical, Inductive
Output Circuit Number of Wires
3

Description

Inductive Proximity Sensor, IP Rating IP67, Standards CE, CSA, REACH, RoHS, UL Listed
