  11. CylindricalUltrasonicSensor, Brass, M12

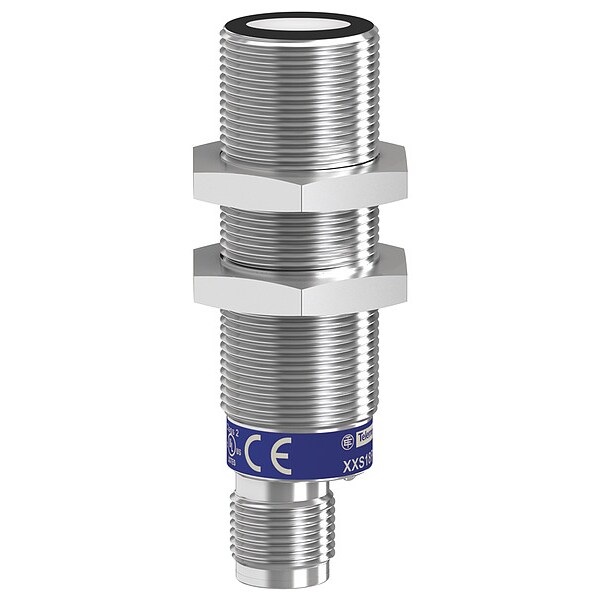

Telemecanique Sensors CylindricalUltrasonicSensor, Brass, M12 XXS18B1PM12 - main

CylindricalUltrasonicSensor, Brass, M12

  • Mfr # XXS18B1PM12

  • Zoro # G3467205

product price: $354.46
/ea
Free Shipping & Returns

Key Features

Case Material
Nickel plated brass
Circuit Type
Discrete
Diameter
18 mm
Power Required
10 to 30V DC
Output
PNP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXS18B1PM12
Zoro #
G3467205
UPC #
785901059776
Country of Origin
United States

Dimensions

Diameter
18 mm
Length
0.71 in
Width
0.71 in
Depth
2.52 in
Length (Straight Wireway)
0.71 in
Height
18 mm
Threaded Length
45 mm
Minimum Size Of Detected Object
cylinder diameter 1 mm 600 mm
Overall Height
64 mm
Overall Diameter
18 mm

Details

Item
Cylindrical Ultrasonic Sensor
Case Material
Nickel plated brass
Circuit Type
Discrete
Power Required
10 to 30V DC
Output
PNP
Electrical Connection
M12
IP Rating
IP65, IP67
Operating Frequency
200 kHz
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Response Time
45 msec
Description/Special Features
With synchronization mode, Software configurable
Material
metal
Standards
CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Front Material
epoxy || rubber || resin
[Sd] Sensing Range
0.105-1 m
Status Led
output state 1 LED yellow) || echo state 1 LED green)
Maximum Delay Recovery
45 ms
Wiring Technique
5-wire
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Discrete Output Function
1 NO or 1 NC programmable
Product Certifications
cULus || RCM || E2 || EAC || Ecolab
Repeat Accuracy
0.001
Type Of Output Signal
discrete
Setting-Up
teach mode || configurator software
Maximum Switching Current
100 mA overload and short-circuit protection
Sensor Type
ultrasonic sensor
Maximum Differential Travel
4 mm
Maximum Voltage Drop
2 V
Discrete Output Type
PNP
Sensor Name
XXS
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Detection System
diffuse
Enclosure Material
Nickel Plated Brass
Ip Degree Of Protection
IP65 conforming to IEC 60529 || IP67
Maximum Delay Response
45 ms
Maximum Delay First Up
120 ms
Ambient Air Temperature For Storage
-40-80°C
Current Consumption
30 mA
Transmission Frequency
200 kHz
Series Name
general purpose
Marking
CE
Supply Voltage Limits
10-30 V DC
Function Available
with synchronisation mode || software configurable
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Switching Frequency
200 kHz
Sensor Design
cylindrical M18
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Ambient Air Temperature For Operation
-25-70°C
Blind Zone
105-105 mm
Deviation Angle From 90° Of Object To Be Detected
-10-10°
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Sensing Distance - Minimum
11 cm
Body Material
Brass
Number of Pins
5
Output Circuit Contact Form
NO or NC
Series
XXS
Features
M18 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode
Operating Temperature - Maximum
158 Degrees F
Style
Cylindrical
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Nickel Plated
Output Circuit Type
PNP
Load Current - Maximum
30 mA
Voltage Rating
10-30V DC
Sensing Distance - Maximum
100 cm

Description

Cylindrical Ultrasonic Sensor, Case Material Nickel plated brass, Diameter 18 mm, PNP Output, Circuit Type Discrete, Electrical Connection M12, Length 0.71 in, Width 0.71 in, Depth 2.52 in, Power Required 10 to 30V DC, IP Rating IP65, IP67, Operating Frequency 200 kHz, Standards CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F, Description/Special Features With synchronization mode, Software configurable
