Item

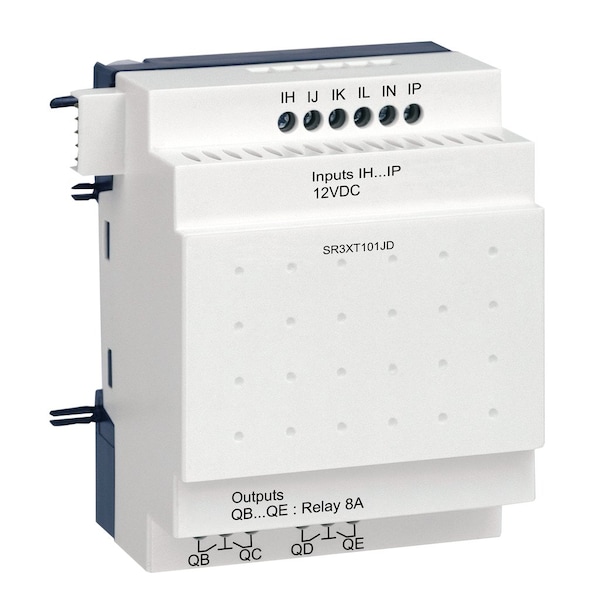

Discrete I/O extension module - 10 I O -
Number of Outputs
4 relay
Response Time
10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
Standards
IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 60068-2-6 Fc, IEC 61000-4-11, IEC 61000-4-6 level 3
Tightening Torque
0.5 N.m
Output Thermal Current
8 A for all 4 outputs relay output
Output Voltage Limits
24...250 V AC relay output), 5...30 V DC relay output)
Backup Time
10 years 25°C
Voltage State 0 Guaranteed
<= 3 V IB...IG used as discrete input circuit, <= 2.4 V I1...IA and IH...IR discrete input circuit
Clock Drift
12 min/year 0-55°C
Contacts Type And Composition
NO relay output
Relative Humidity
95-95 % without condensation or dripping water
Ambient Air Temperature For Storage
-40-70°C
Pollution Degree
2 IEC 61131-2
Supply Voltage Limits
10.4-14.4 V
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Ambient Air Temperature For Operation
-20-40°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Counting Frequency
1 kHz discrete input
Electrical Durability
AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
Operating Altitude
6561.68 ft (2000 m)
[Us] Rated Supply Voltage
12 V DC
Switching Capacity In Ma
>= 10 mA 12 V relay output)
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Operating Rate In Hz
0.1 Hz at Ie)relay output, 10 Hz no load)relay output
Input Compatibility
3-wire proximity sensors PNP discrete input
Voltage State 1 Guaranteed
>= 7 V IB...IG used as discrete input circuit, >= 5.6 V I1...IA and IH...IR discrete input circuit
Discrete Input Current
4 mA
Current State 1 Guaranteed
>= 2 mA I1...IA and IH...IR discrete input circuit), >= 0.5 mA IB...IG used as discrete input circuit)
Discrete Input Number
6 IEC 61131-2 Type 1
Discrete Input Type
resistive
Input Impedance
14 kOhm IB...IG used as discrete input circuit, 2.7 kOhm I1...IA and IH...IR discrete input circuit
Discrete Input Voltage
12 V DC
Environmental Characteristic
EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2
Reverse Polarity Protection
with
Mechanical Durability
10000000 cycles relay output
Connections - Terminals
screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Product or Component Type
discrete I/O extension module
Maximum Altitude Transport
3048 m
Current State 0 Guaranteed
<= 0.2 mA IB...IG used as discrete input circuit), <= 0.9 mA I1...IA and IH...IR discrete input circuit)
Ip Degree of Protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
Number or Control Scheme Lines
120-120 ladder
Overvoltage Category
III IEC 60664-1
Range of Product
Zelio Logic
Number Or Control Scheme Lines
120-120 ladder
Product Or Component Type
discrete I/O extension module
Checks
program memory on each power up
Number of outputs
4 relay
Product Certifications
GL || UL || CSA || C-tick || GOST
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
