Shop TELEMECANIQUE SENSORS

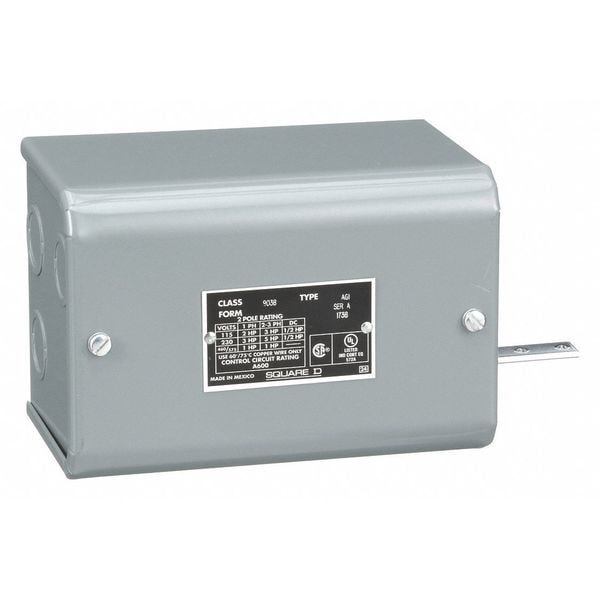

DPST Alternator Open Liquid Level Switch Close on Rise 600VAC

  • Mfr # 9038AG1
  • Zoro # G0928715
product price:
$
233.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
Amps
10 A
Height
4.5 in
HP @ 1 Phase - 240V
3 hp
Max. Current
600 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9038AG1
Zoro #
G0928715
UPC #
785901591016
Country of Origin
Mexico

Dimensions

Height
4.5 in
Conduit Size
4 1/2 in, 4 3/4 in
Width
4.69 in
Overall Length
11.8 in
Overall Height
4.5 in
Overall Width
4.69 in
Manufacturer Warranty Length
18 mo

Details

Voltage
600V AC
Item
Alternator Open Liquid Level Switch
Amps
10 A
HP @ 1 Phase - 240V
3 hp
Max. Current
600 A
Switch Function
Close On Rise
Body Material
Steel
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 240V
5 hp
Electrical Connections
Screw Clamp
Operating Temp. Range
-22 Degrees to 220 Degrees F
NEMA Rating
1
Float Rod Angle
Vertical
VA Rating
120V AC To 600V AC
Standards
CSA File No.LR25490, UL 508, UL E12158
Mounting
Open Tank
Float Switch Contact Form
DPST
Contact Form
4NC
Max. Voltage
600V
Float Travel
1 1/4 in
Series
9038A
Features
(4) Knock-Outs Conduit Entries for 1/2 in or 3/4 in
Product Type
Alternator Open Liquid Level Switch
Electrical Connection
Screw-Clamp Terminal
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Single Phase - 240V AC
3 hp
Voltage Rating - Maximum
575 V AC
Horsepower @ Single Phase - 120V AC
2 hp
NEMA Enclosure Rating
1
Current Rating
600 A
Horsepower @ Three Phase - 240V AC
5 hp
Operating Temperature - Maximum
220 Degrees F
Minimum Media Specific Gravity
0.85
Mounting Style
Vertical
Current Rating - Maximum
600 A
Switch Structure
DPST

Description

Alternator Open Liquid Level Switch, 10 A Amps, Contact Form DPST-4NC, VA Rating 120V AC To 600V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 11.8 in, Height 4.5 in, Width 4.69 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel, Float Rod Angle Vertical, Conduit Size 4 1/2 in, 4 3/4 in
