  8. Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

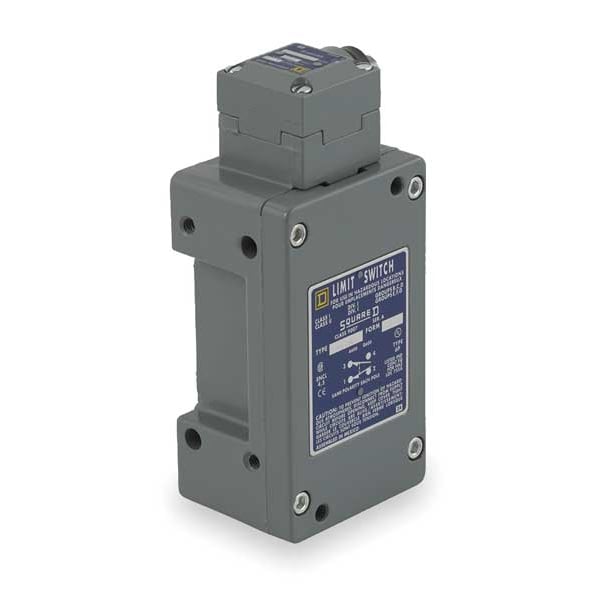

Telemecanique Sensors Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side 9007CR53G - main

Hazardous Location Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # 9007CR53G

  • Zoro # G0584534

product price:  $483.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007CR53G
Zoro #
G0584534
UPC #
785901763390
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
2.08 in
Actuator Length
0.61"
Body Height - Limit Switch
4.25 in
Body Width - Limit Switch
2.72 in
Height
6.10"
Width
2.72"
Actuator Length - Limit Switch
0.61 in
Depth
2.08"
Manufacturer Warranty Length
18 mo
Body Height
4.25 in
Overall Width
2.72 in
Overall Height
6.1 in
Overall Depth
2.48 in
Mounting Hole Diameter
0.2 in
Body Depth
2.08 in
Body Width
2.72 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Amps
10
Boot Sealed Actuator - Limit Switch
No
Boot Sealed Actuator (Limit Switch)
No
Actuator Location (Limit Switch)
Side
Actuator Location
Side
Contact Form
1NO/1NC
Actuator Style (Limit Switch)
Plunger
Stem Thread - Limit Switch
No Stem
Limit Switch Style
Hazardous Location Limit Switch
NEMA Rating
1, 12, 13, 2, 4, 6, 6P, 7, 9
Series
9007CR
Voltage Rating
600VAC/DC
Wiring Entry
1/2 in NPT
Body Material
Aluminum
AC Contact Rating
10 A @ 600 V
Standards
CSA C22.2 No.14, UL 508
Body Style (Limit Switch)
Standard
Certification
UL Class I Groups B, C, D and Class II Groups E, F, G
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Operating Force
3.0 lb
DC Contact Rating
10 A @ 600 V
IP Rating
IP67
Mounting Hole - Limit Switch
(2) 0.20 in dia
Movement
Horizontal
Contact Form - Limit Switch
1NC/1NO
Operating Temp. Range
0 Degrees to 185 Degrees F
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Actuator Style
Plunger
Travel
0.25 in
Electrical Connection
Screw Clamp Terminals
Basic Actuator Style (Limit Switch)
Plunger
Special Features
lateral approach, 1 direction
Contact Material
silver contacts
Head Material
zinc
Actuation Type
on end
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Head Type
plunger head
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Contact Action
snap action
Weight
2.5 lb(US)
Short Circuit Protection
10 A CC non-time delay
Electrical Durability
1000000 cycles
Mechanical Durability
10000000 cycles
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Pretravel
0.08 in
Mounting Hole Vertical Center to Center Distance
60 mm
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
30 mm
Operating Temperature - Minimum
-20 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
4 lbf
Number of Mounting Holes
2
Directional Movement
Linear
Number Of Poles
1
Type Of Operator
stainless steel spring return side plunger

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.61 in, Body Height - Limit Switch 4.25 in, Body Width - Limit Switch 2.72 in, Body Depth - Limit Switch 2.08 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, 7, 9
