  15. Hazardous Location Limit Switch, Plunger, Spring Return, 2NC/2NO, 10A at 600V AC

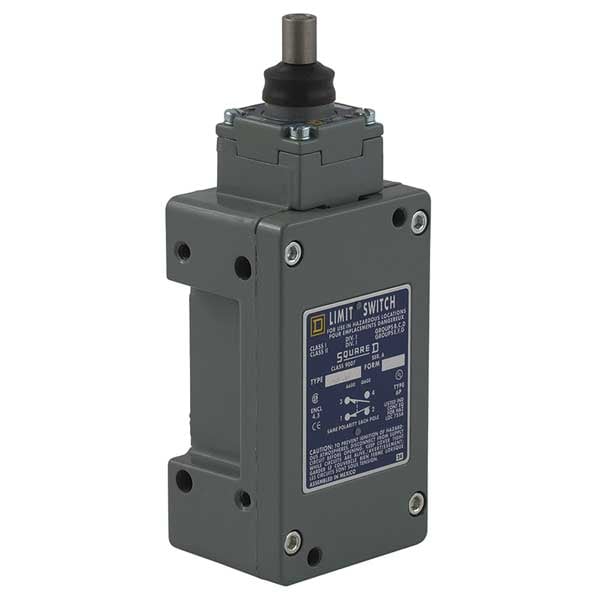

Telemecanique Sensors Hazardous Location Limit Switch, Plunger, Spring Return, 2NC/2NO, 10A at 600V AC 9007CR61R - main

Hazardous Location Limit Switch, Plunger, Spring Return, 2NC/2NO, 10A at 600V AC

  • Mfr # 9007CR61R

  • Zoro # G1472493

product price: $732.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007CR61R
Zoro #
G1472493
UPC #
785901637967
Country of Origin
Mexico

Dimensions

Depth
2.08"
Body Depth - Limit Switch
2.08 in
Body Width - Limit Switch
2.72 in
Actuator Length - Limit Switch
1.91 in
Height
6.10"
Actuator Length
1.91"
Body Height - Limit Switch
4.25 in
Width
2.72"
Body Depth
2.08 in
Overall Height
7.21 in
Overall Width
2.72 in
Overall Depth
2.08 in
Body Width
2.72 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.2 in
Body Height
4.25 in

Details

Item
Hazardous Location Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Spring Return
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Voltage Rating
600VAC/DC
Actuator Location (Limit Switch)
Top
Basic Actuator Style (Limit Switch)
Plunger
Travel
0.25 in
Limit Switch Style
Hazardous Location Limit Switch
DC Contact Rating
10A at 600V
Body Material
Aluminum
Operating Temp. Range
0 Degrees to 185 Degrees F
NEMA Rating
1, 12, 13, 2, 4, 6, 6P, 7, 9
Movement
Vertical
Mounting Hole - Limit Switch
(2) 0.20 in dia
Stem Thread - Limit Switch
No Stem
Actuator Style (Limit Switch)
Plunger
Wiring Entry
1/2 in NPT
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Contact Form
2NC/2NO
IP Rating
67
Boot Sealed Actuator (Limit Switch)
No
Operating Force
7.0 lb
AC Contact Rating
10A at 600V
Standards
CSA, UL
Electrical Connection
Screw Terminals
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Actuator Location
Top
Boot Sealed Actuator - Limit Switch
No
Certification
UL Class I Groups B, C, D and Class II Groups E, F, G
Amps
10
Body Style (Limit Switch)
Standard
Actuator Style
Plunger
Series
9007CR
Contact Form - Limit Switch
2NC/2NO
Head Material
zinc
Special Features
vertical approach, vertical approach
Contact Material
silver contacts
Mechanical Durability
10000000 cycles
Head Type
plunger head
Short Circuit Protection
10 A CC non-time delay
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
2.5 lb(US)
Electrical Durability
1000000 cycles
Contact Action
snap action
Actuation Type
on end
Directional Movement
Linear
Number of Mounting Holes
2
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Includes Actuator
No Actuator Included
Operating Force - Maximum
7 lbf
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Hole Vertical Center to Center Distance
60 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Pretravel
0.08 in
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Number Of Poles
2
Type Of Operator
zinc spring return plunger without operator mushroom button head)

Description

Hazardous Location Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 2NC/2NO, Actuator Length - Limit Switch 1.91 in, Body Height - Limit Switch 4.25 in, Body Width - Limit Switch 2.72 in, Body Depth - Limit Switch 2.08 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, 7, 9
