Shop TELEMECANIQUE SENSORS

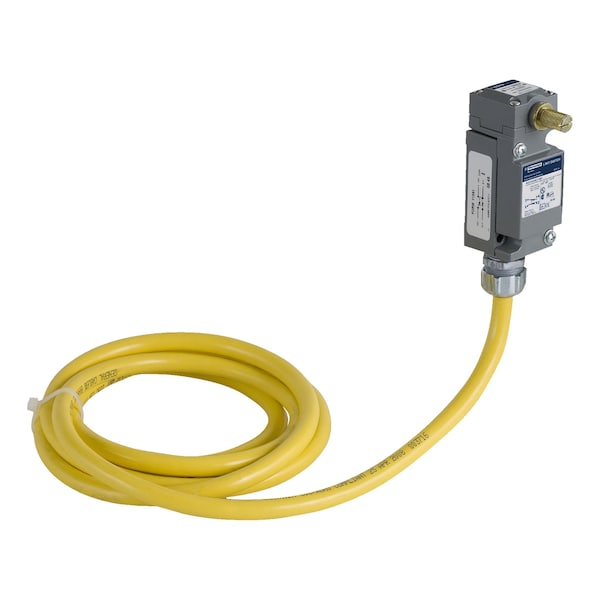

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # 9007C54B2Y1851

  • Zoro # G6171514

product price:
$
273.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9007C54B2Y1851
Zoro #
G6171514
UPC #
785901530800
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
1.14 in
Width
1.55"
Depth
1.79"
Body Height - Limit Switch
2.5 in
Height
4.02"
Body Width - Limit Switch
0.83 in
Mounting Hole Diameter
0.2 in
Overall Width
1.55 in
Overall Height
4.02 in
Body Width
0.83 in
Overall Depth
2.5 in
Manufacturer Warranty Length
18 mo
Body Depth
1.14 in
Body Height
2.5 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Amps
10
Boot Sealed Actuator (Limit Switch)
No
Body Style (Limit Switch)
Miniature
AC Contact Rating
10 A @ 600 V
Electrical Connection
Pre-Wired Cable
Mounting Hole - Limit Switch
(2) 0.20 in dia
Operating Temp. Range
-20 Degrees to 185 Degrees F
Boot Sealed Actuator - Limit Switch
No
Basic Actuator Style (Limit Switch)
Rotary
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Contact Form
1NO/1NC
Series
9007C
Actuator Location (Limit Switch)
Side
IP Rating
IP67
Wiring Entry
Potted Cable
Travel
Total Travel 90 Degrees
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Actuator Location
Side
Body Material
Zinc
Standards
C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508
Voltage Rating
600VAC/DC
Actuator Style (Limit Switch)
Rotary, No Lever
Movement
CCW, CW
Actuator Style
Rotary Head, No Lever
Stem Thread - Limit Switch
No Stem
Operating Force
4.0 in-lb
Contact Form - Limit Switch
1NC/1NO
DC Contact Rating
10 A @ 600 V
Special Features
lateral approach, 1 or 2 programmable direction
Head Material
zinc
Contact Material
silver contacts
Short Circuit Protection
10 A CC non-time delay
Actuation Type
from left and right || CW and CCW
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Electrical Durability
1000000 cycles
Min. Actuation Velocity Horizontal
90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Head Type
rotary head
Contact Action
snap action
Body Configuration
Plug-In
Total Travel
90 Degrees
Operating Temperature - Minimum
-20 Degrees F
Mounting Hole Horizontal Center to Center Distance
30 mm
Directional Movement
CCW/CW
Number of Mounting Holes
2
Includes Actuator
No Actuator Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
185 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
4 in-lb
Type Of Operator
zinc spring return without operating lever 9007C lever
Number Of Poles
1

Description

Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Mounting - Limit Switch Surface
