  8. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

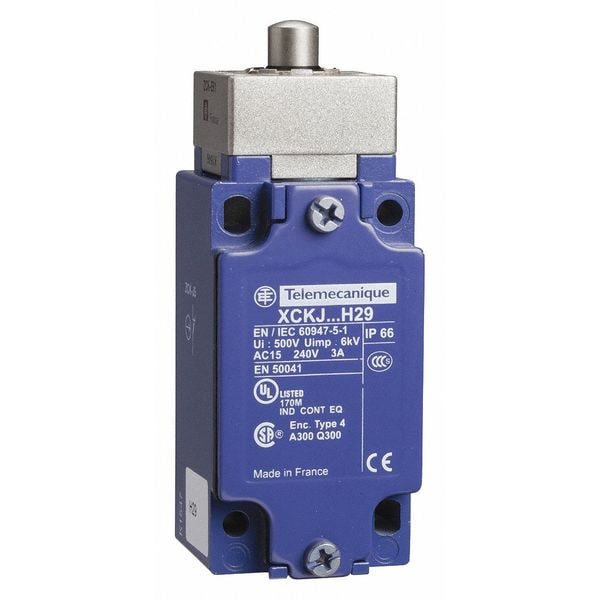

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKJ161H7 - main

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKJ161H7

  • Zoro # G1069975

product price:  $132.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ161H7
Zoro #
G1069975
UPC #
785901240228
Country of Origin
France

Dimensions

Height
3.94"
Body Depth - Limit Switch
2.36 in
Width
1.57"
Depth
1.73"
Actuator Length
0.28"
Actuator Length - Limit Switch
0.28 in
Body Width - Limit Switch
1.57 in
Arm Width
0.39 in
Body Height - Limit Switch
4.01 in
Overall Depth
1.73 in
Body Height
4.01 in
Overall Height
3.03 in
Mounting Hole Diameter
0.21 in
Body Width
1.57 in
Manufacturer Warranty Length
18 mo
Overall Width
1.57 in
Body Depth
1.73 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Clamp Terminals
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Body Material
Zamak
Basic Actuator Style (Limit Switch)
Plunger
Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Standards
CE, CSA, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Style
Plunger
Amps
10
Body Style (Limit Switch)
Standard
NEMA Rating
1, 12, 13, 2, 4
Voltage Rating
240VAC/DC
Series
XCKJ
Travel
0.24 in
Stem Thread - Limit Switch
No Stem
Mounting Hole - Limit Switch
(4) 0.21 in dia
Actuator Location (Limit Switch)
Top
Contact Form
1NO/1NC
Actuator Location
Top
Limit Switch Style
Heavy Duty Limit Switch
Contact Form - Limit Switch
1NC/1NO
Operating Force
4.5 lb
AC Contact Rating
10 A @ 240 V
Boot Sealed Actuator - Limit Switch
No
Movement
Vertical
Arm Material
Steel
IP Rating
IP66
DC Contact Rating
10 A @ 240 V
Special Features
vertical approach, 1 direction
Head Material
zamak
Certification
UL || CSA || CCC
Short Circuit Protection
10 A cartridge fuse gG
Actuation Type
on end
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Min. Actuation Velocity Horizontal
0.5 m/s
Weight
0.43 kg
Head Type
plunger head
Mechanical Durability
30000000 cycles
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Contact Action
snap action
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Type Of Operator
spring return plunger metal
Number Of Poles
2
Directional Movement
Linear
Number of Mounting Holes
4
Mounting Hole Horizontal Center to Center Distance
30 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
20 N
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.28 in, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
