  8. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

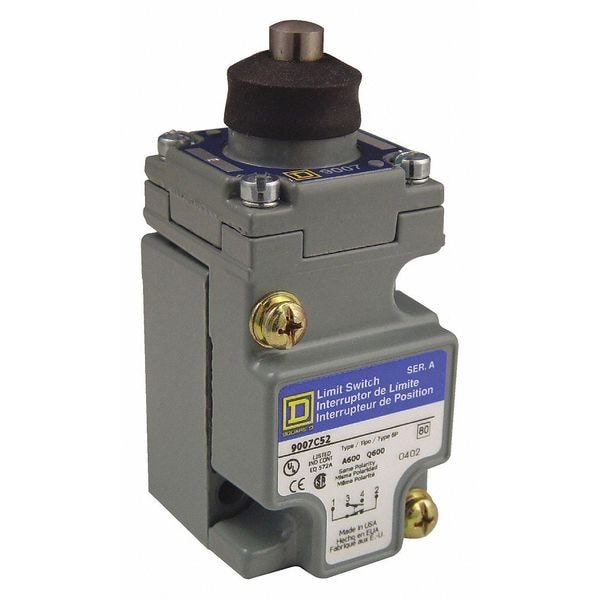

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top 9007C52E - main
Shop TELEMECANIQUE SENSORS

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C52E

  • Zoro # G1299751

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007C52E
Zoro #
G1299751
UPC #
785901783381
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
1.14 in
Body Width - Limit Switch
0.83 in
Body Height - Limit Switch
2.5 in
Height
3.14"
Actuator Length - Limit Switch
0.48 in
Depth
1.79"
Width
1.55"
Actuator Length
0.48"
Manufacturer Warranty Length
18 mo
Overall Height
3.62 in
Mounting Hole Diameter
0.2 in
Body Height
2.5 in
Overall Depth
1.79 in
Body Width
0.83 in
Overall Width
1.55 in
Body Depth
1.14 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
600VAC/DC
Series
9007C
Actuator Location (Limit Switch)
Top
Stem Thread - Limit Switch
No Stem
Amps
10
Travel
0.25 in
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Operating Force
3.0 lb
Actuator Location
Top
Body Style (Limit Switch)
Miniature
Actuator Style (Limit Switch)
Plunger
DC Contact Rating
10 A @ 600 V
Contact Form
1NO/1NC
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Hole - Limit Switch
(2) 0.20 in dia
AC Contact Rating
10 A @ 600 V
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Clamp Terminals
Standards
CSA, UL Listed
Movement
Vertical
Body Material
Zinc
Actuator Style
Plunger
Limit Switch Style
Heavy Duty Limit Switch
Wiring Entry
1/2 in NPT
Boot Sealed Actuator (Limit Switch)
No
Contact Form - Limit Switch
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Operating Temp. Range
0 Degrees to 185 Degrees F
IP Rating
IP67
Head Material
zinc
Special Features
vertical approach, 1 direction
Contact Material
silver contacts
Contact Action
snap action
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Electrical Durability
1000000 cycles
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Short Circuit Protection
10 A CC non-time delay
Mechanical Durability
10000000 cycles
Actuation Type
on end
Head Type
plunger head
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-20 Degrees F
Body Configuration
Plug-In
Mounting Hole Vertical Center to Center Distance
60 mm
Directional Movement
Linear
Pretravel
0.08 in
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Operating Force - Maximum
3 lbf
Operating Temperature - Maximum
185 Degrees F
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Hole Horizontal Center to Center Distance
30 mm
Type Of Operator
stainless steel spring return plunger
Number Of Poles
1

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.48 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
