  8. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

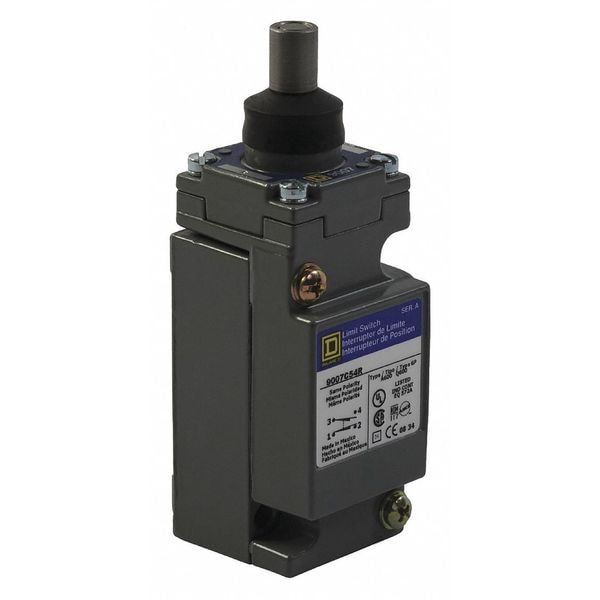

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top 9007C54R - main

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # 9007C54R

  • Zoro # G1219075

product price:  $229.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007C54R
Zoro #
G1219075
UPC #
785901538257
Country of Origin
Mexico

Dimensions

Actuator Length
1.91"
Depth
1.79"
Width
1.55"
Body Width - Limit Switch
0.83 in
Actuator Length - Limit Switch
1.91 in
Height
4.02"
Body Height - Limit Switch
2.5 in
Body Depth - Limit Switch
1.14 in
Overall Width
1.55 in
Body Width
0.83 in
Overall Height
5.44 in
Body Depth
1.14 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
18 mo
Body Height
2.5 in
Overall Depth
1.79 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 600V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
600VAC/DC
DC Contact Rating
10 A @ 600 V
Amps
10
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Wiring Entry
1/2 in NPT
Boot Sealed Actuator - Limit Switch
No
Boot Sealed Actuator (Limit Switch)
No
Electrical Connection
Screw Clamp Terminals
Contact Form - Limit Switch
1NC/1NO
Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Operating Force
7.0 lb
Movement
Vertical
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Mounting Hole Spacing - Limit Switch
2.35 in x 1.17 in
Stem Thread - Limit Switch
No Stem
Standards
CSA C22.2 No.14, UL 508
Body Material
Zinc
Series
9007C
AC Contact Rating
10 A @ 600 V
Contact Form
1NO/1NC
Travel
0.25 in
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location
Top
IP Rating
IP67
Basic Actuator Style (Limit Switch)
Plunger
Operating Temp. Range
0 Degrees to 185 Degrees F
Actuator Style
Plunger
Actuator Location (Limit Switch)
Top
Contact Material
silver contacts
Special Features
vertical approach, vertical approach
Head Material
zinc
Contact Action
snap action
Vibration Resistance
25 gn 10-150 Hz)IEC 60068-2-6
Weight
1.25 lb(US)
Shock Resistance
60 gn 9 ms IEC 60068-2-27
Head Type
plunger head
Short Circuit Protection
10 A CC non-time delay
Mechanical Durability
10000000 cycles
Actuation Type
on end
Electrical Durability
1000000 cycles
Directional Movement
Linear
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Hole Vertical Center to Center Distance
60 mm
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
7 lbf
Pretravel
0.08 in
Operating Temperature - Minimum
-20 Degrees F
Number of Mounting Holes
2
Mounting Style
Surface
Includes Actuator
No Actuator Included
Body Configuration
Plug-In
Mounting Hole Horizontal Center to Center Distance
30 mm
Boot Sealed Actuator
No Boot Included
Type Of Operator
zinc spring return plunger without operator mushroom button head)
Number Of Poles
1

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.91 in, Body Height - Limit Switch 2.5 in, Body Width - Limit Switch 0.83 in, Body Depth - Limit Switch 1.14 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
