  8. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

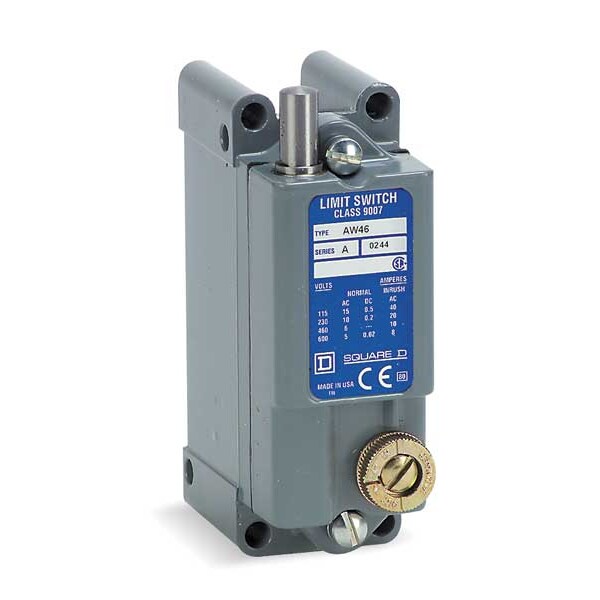

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top 9007AW46 - main

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # 9007AW46

  • Zoro # G3018407

product price:  $327.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007AW46
Zoro #
G3018407
UPC #
785901808602
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
1.44 in
Body Width - Limit Switch
2.53 in
Arm Width
0.31 in
Width
3.00"
Depth
1.40"
Body Height - Limit Switch
3.68 in
Height
3.91"
Actuator Length - Limit Switch
0.5 in
Actuator Length
0.5 in
Body Width
2.53 in
Overall Width
2.53 in
Mounting Hole Diameter
0.2 in
Body Depth
1.44 in
Overall Height
3.68 in
Body Height
3.68 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.44 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
15A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style
Push Rod Plunger
Boot Sealed Actuator (Limit Switch)
No
Movement
Vertical
Operating Temp. Range
0 Degrees to 185 Degrees F
NEMA Rating
1, 12, 13, 2, 4
Wiring Entry
1/2 in NPT
Arm Material
Steel
Contact Form - Limit Switch
1NC/1NO
Travel
0.25 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Operating Force
3.0 lb
Limit Switch Style
Heavy Duty Limit Switch
Standards
CSA, UL Listed
Actuator Location
Top
Amps
15
Body Style (Limit Switch)
Standard
IP Rating
IP65
Contact Form
SPDT-DB-1NO/1NC
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Electrical Connection
Screw Clamp Terminals
Series
9007AW
AC Contact Rating
15 A @ 600 V
Body Material
Zinc
DC Contact Rating
15 A @ 600 V
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location (Limit Switch)
Top
Actuator Style (Limit Switch)
Plunger
Voltage Rating
600VAC/DC
Differential Travel
1.3 in
Special Features
vertical approach, 1 direction
Contact Material
silver contacts
Weight
1.25 lb(US)
Head Type
plunger head
Actuation Type
on end
Contact Action
snap action
Plunger Adjustability
Adjustable
NEMA Enclosure Rating
1, 12, 13, 2, 4
Operating Temperature - Minimum
0 Degrees F
Mounting Hole Horizontal Center to Center Distance
27 mm
Pretravel
0.09 in
Body Configuration
Plug-In
Number of Mounting Holes
6
Total Travel
0.25 in
Operating Temperature - Maximum
185 Degrees F
Boot Sealed Actuator
No Boot Included
Operating Force - Maximum
3 lbf
Directional Movement
Linear
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
89 mm
Number Of Poles
1
Type Of Operator
spring return push rod plunger steel with micrometer adjustment

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.5 in, Body Height - Limit Switch 3.68 in, Body Width - Limit Switch 2.53 in, Body Depth - Limit Switch 1.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4
