  8. Heavy Duty Limit Switch, Plunger, 1NC/1NO, 4A at 240V AC, Actuator Location: Top

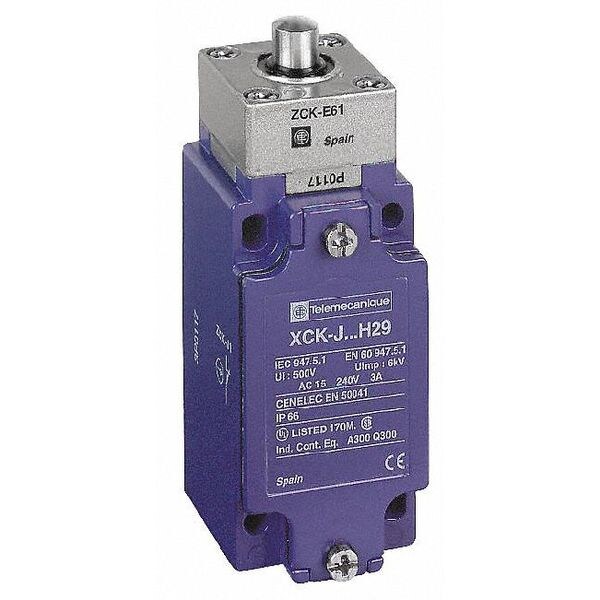

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, 1NC/1NO, 4A at 240V AC, Actuator Location: Top XCKJ161D - main

Heavy Duty Limit Switch, Plunger, 1NC/1NO, 4A at 240V AC, Actuator Location: Top

  • Mfr # XCKJ161D

  • Zoro # G6984555

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
4A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKJ161D
Zoro #
G6984555
UPC #
785901588993
Country of Origin
France

Dimensions

Body Height - Limit Switch
4.01 in
Actuator Length
0.28"
Actuator Length - Limit Switch
0.28 in
Height
4.41"
Body Width - Limit Switch
1.57 in
Depth
1.73"
Width
1.57"
Arm Width
0.39 in
Body Depth - Limit Switch
2.36 in
Body Height
4.01 in
Overall Depth
1.73 in
Overall Width
1.57 in
Overall Height
3.5 in
Body Depth
1.73 in
Manufacturer Warranty Length
18 mo
Body Width
1.57 in
Mounting Hole Diameter
0.21 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
4A at 240V
DC Contact Rating - Limit Switch
4A at 240V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Contact Form - Limit Switch
1NC/1NO
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
AC Contact Rating
4 A @ 240 V
Amps
4
Actuator Location (Limit Switch)
Top
IP Rating
IP66
Actuator Location
Top
Operating Temp. Range
-13 Degrees to 158 Degrees F
Operating Force
4.5 in-lb
Contact Form
1NO/1NC
Standards
CCC, CENELEC EN 50041, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
5-Pin M12 Connector
Voltage Rating
240VAC/DC
Body Style (Limit Switch)
Standard
Series
XCKJ
Wiring Entry
Connector
NEMA Rating
1, 12, 13, 2, 4
Stem Thread - Limit Switch
No Stem
DC Contact Rating
4 A @ 240 V
Boot Sealed Actuator (Limit Switch)
No
Movement
Vertical
Mounting Hole - Limit Switch
(4) 0.21 in dia
Actuator Style (Limit Switch)
Plunger
Basic Actuator Style (Limit Switch)
Plunger
Travel
0.24 in
Body Material
Zamak
Limit Switch Style
Heavy Duty Limit Switch
Arm Material
Steel
Actuator Style
Plunger
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Head Material
zamak
Certification
UL || CSA || CCC
Special Features
vertical approach, 1 direction
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Contact Action
snap action
Actuation Type
on end
Mechanical Durability
30000000 cycles
Weight
0.43 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
0.5 m/s
Head Type
plunger head
Short Circuit Protection
4 A cartridge fuse gG
Electrical Durability
5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
NEMA Enclosure Rating
1, 12, 13, 2, 4
Directional Movement
Linear
Mounting Style
Surface
Operating Torque - Maximum
4.5 in-lb
Operating Temperature - Maximum
158 Degrees F
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Hole Vertical Center to Center Distance
60 mm
Number of Mounting Holes
4
Operating Force - Maximum
20 N
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 4A @ 240V, DC Contact Rating - Limit Switch 4A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.28 in, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface
