  8. Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

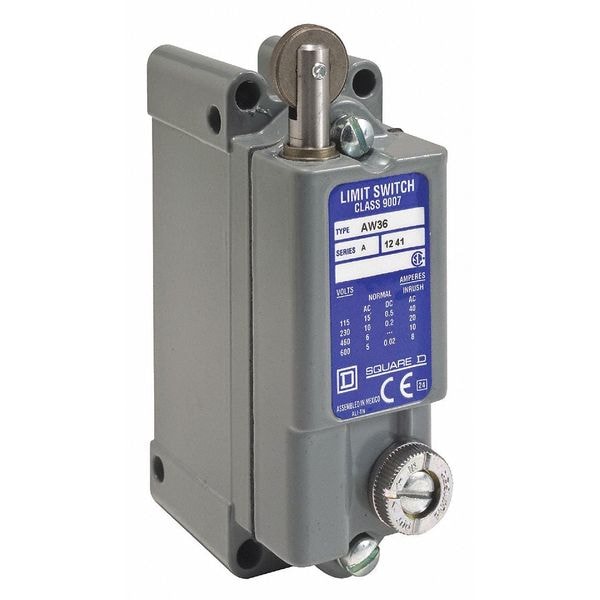

Telemecanique Sensors Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 15A at 600V AC, Actuator Location: Top 9007AW36 - main

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 15A at 600V AC, Actuator Location: Top

  • Mfr # 9007AW36

  • Zoro # G2486635

product price:  $319.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007AW36
Zoro #
G2486635
UPC #
785901804437
Country of Origin
Multiple

Dimensions

Body Width - Limit Switch
2.53 in
Body Height - Limit Switch
3.68 in
Body Depth - Limit Switch
1.44 in
Height
3.91"
Roller Width
0.25 in
Roller Dia.
0.63 in
Actuator Length - Limit Switch
0.5 in
Depth
1.40"
Actuator Length
0.5 in
Width
3.00"
Roller Diameter
0.63 in
Overall Height
3.68 in
Body Height
3.68 in
Body Depth
1.44 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
18 mo
Overall Width
2.53 in
Body Width
2.53 in
Overall Depth
1.44 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
15A at 600V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Contact Form
SPDT-DB-1NO/1NC
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
0 Degrees to 185 Degrees F
Travel
0.25 in
IP Rating
IP65
Actuator Style
Roller Plunger
Body Style (Limit Switch)
Standard
Movement
Horizontal
Actuator Location
Top
Actuator Location (Limit Switch)
Top
Operating Force
3.0 lb
Series
9007AW
Electrical Connection
Screw Clamp Terminals
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
AC Contact Rating
15 A @ 600 V
Boot Sealed Actuator (Limit Switch)
No
Basic Actuator Style (Limit Switch)
Plunger
Standards
C22.2-14, CSA, NEMA 250, UL Listed, UL 508
Contact Form - Limit Switch
1NC/1NO
Amps
15
Voltage Rating
600VAC/DC
Actuator Style (Limit Switch)
Plunger, Roller
Roller Material
Steel
DC Contact Rating
15 A @ 600 V
NEMA Rating
1, 12, 13, 2, 4
Body Material
Zinc
Limit Switch Style
Heavy Duty Limit Switch
Wiring Entry
1/2 in NPT
Contact Material
silver contacts
Differential Travel
1.3 in
Special Features
traverse approach, 2 directions
Head Type
plunger head
Contact Action
snap action
Weight
1.25 lb(US)
Actuation Type
by 30° cam
Pretravel
0.09 in
Operating Force - Maximum
3 lbf
Boot Sealed Actuator
No Boot Included
Plunger Adjustability
Adjustable
Mounting Hole Horizontal Center to Center Distance
27 mm
Operating Temperature - Minimum
0 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4
Number of Mounting Holes
6
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
89 mm
Body Configuration
Plug-In
Directional Movement
Linear
Total Travel
0.25 in
Operating Temperature - Maximum
185 Degrees F
Number Of Poles
1
Type Of Operator
spring return roller plunger steel with micrometer adjustment

Description

Plug-In Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.5 in, Body Height - Limit Switch 3.68 in, Body Width - Limit Switch 2.53 in, Body Depth - Limit Switch 1.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4
