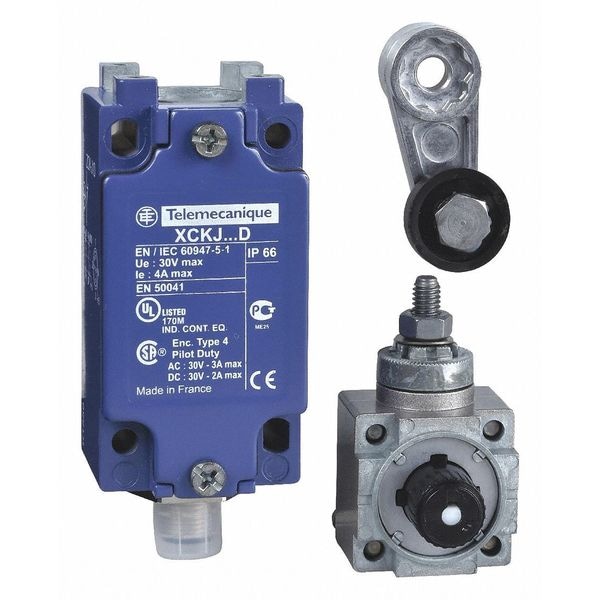

Telemecanique Sensors Heavy Duty Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side XCKJ10511D - main
Shop TELEMECANIQUE SENSORS

Heavy Duty Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side

  • Mfr # XCKJ10511D

  • Zoro # G6591925

product price:  $166.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ10511D
Zoro #
G6591925
UPC #
785901627302
Country of Origin
France

Dimensions

Depth
1.73"
Body Width - Limit Switch
1.57 in
Actuator Length
1.61"
Body Depth - Limit Switch
2.36 in
Height
4.41"
Width
1.57"
Body Height - Limit Switch
4.01 in
Actuator Length - Limit Switch
1.61 in
Roller Dia.
0.87 in
Roller Width
0.2 in
Overall Width
1.57 in
Roller Diameter
0.87 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.73 in
Body Height
4.01 in
Mounting Hole Diameter
0.21 in
Body Depth
1.61 in
Overall Height
3.5 in
Body Width
1.57 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
DC Contact Rating - Limit Switch
4A at 240V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Body Style (Limit Switch)
Standard
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP66
Basic Actuator Style (Limit Switch)
Rotary
Series
XCKJ
DC Contact Rating
4 A @ 240 V
Operating Force
2.21 in-lb
Movement
CCW, CW
Boot Sealed Actuator - Limit Switch
No
Boot Sealed Actuator (Limit Switch)
No
Actuator Location
Side
Electrical Connection
5-Pin M12 Connector
Actuator Style
Roller Lever Plunger
Amps
4
Contact Form
1NO/1NC
Actuator Location (Limit Switch)
Side
Standards
CCC, CENELEC EN 50041, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Contact Form - Limit Switch
1NC/1NO
AC Contact Rating
4 A @ 240 V
Mounting Hole - Limit Switch
(4) 0.21 in dia
Arm Material
Zinc
Body Material
Zamak
Stem Thread - Limit Switch
No Stem
Voltage Rating
240VAC/DC
Actuator Style (Limit Switch)
Rotary, Roller Lever
NEMA Rating
1, 12, 13, 2, 4
Wiring Entry
Connector
Travel
Total Travel 90 Degrees
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Roller Material
Thermoplastic
Limit Switch Style
Heavy Duty Limit Switch
Head Material
zamak
Certification
CCC || CSA || UL
Special Features
lateral approach, 1 or 2 programmable direction
Actuation Type
by 30° cam
Contact Action
snap action
Min. Actuation Velocity Horizontal
1.5 m/s
Weight
0.48 kg
Head Type
rotary head
Electrical Durability
5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
30000000 cycles
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Short Circuit Protection
4 A cartridge fuse gG
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Boot Sealed Actuator
No Boot Included
Mounting Hole Vertical Center to Center Distance
60 mm
Total Travel
90 Degrees
Mounting Style
Surface
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
4
NEMA Enclosure Rating
1, 12, 13, 2, 4
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
2.21 in-lb
Mounting Hole Horizontal Center to Center Distance
30 mm
Directional Movement
CCW/CW
Operating Temperature - Maximum
158 Degrees F
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 240V, DC Contact Rating - Limit Switch 4A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.61 in, Body Height - Limit Switch 4.01 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 2.36 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4
