  11. Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded

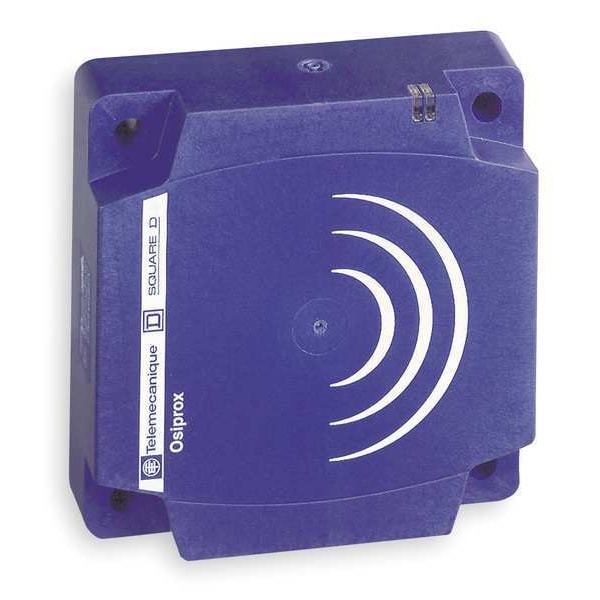

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded XS8D1A1MAL2 - main

Inductive, Rectangular Proximity Sensor, PBT, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # XS8D1A1MAL2

  • Zoro # G3007401

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
103 mm
Width
80 mm
Depth
26 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8D1A1MAL2
Zoro #
G3007401
UPC #
785901826743
Country of Origin
France

Dimensions

Length
103 mm
Width
80 mm
Depth
26 mm
Overall Height
26 mm
Overall Depth
80 mm
Overall Width
80 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
150 Hz
Max. Current Load
200mA
IP Rating
IP68
Standards
CCC, CE, CSA, Ecolab, RoHS, UL Listed
Description/Special Features
Auto Adaptable
Operating Temp. Range
-13 Degrees to 158 Degrees F
Electrical Connection
Bare Wire
Application
general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
20-264 V AC/DC
Maximum Delay Recovery
6 ms
Body Type
fixed
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.3 ms
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS8
Switching Capacity
5...200 mA DC || 5...300 mA AC
Maximum Delay First Up
15 ms
Maximum Voltage Drop
<5.5 V closed)
Switching Frequency
150 Hz
Includes Indicator Lights
No Indicator Lights Included
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
4X
Features
Auto Adaptable
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
24-240V DC
Sensing Face Shielding
Shielded
AC Voltage Rating
24-240V AC
Sensing Distance - Maximum
60 mm
Output Circuit Number of Wires
2
Electrical Installation Type
Prewired Cable
Body Material
PBT
Load Current - Maximum
300 mA
Output Circuit Contact Form
NO
Style
Inductive, Rectangular
Output Circuit Type
AC/DC-Type

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 150 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 60 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, Case Material Plastic, Length 103 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA, Description/Special Features Auto Adaptable
