Shop OMRON

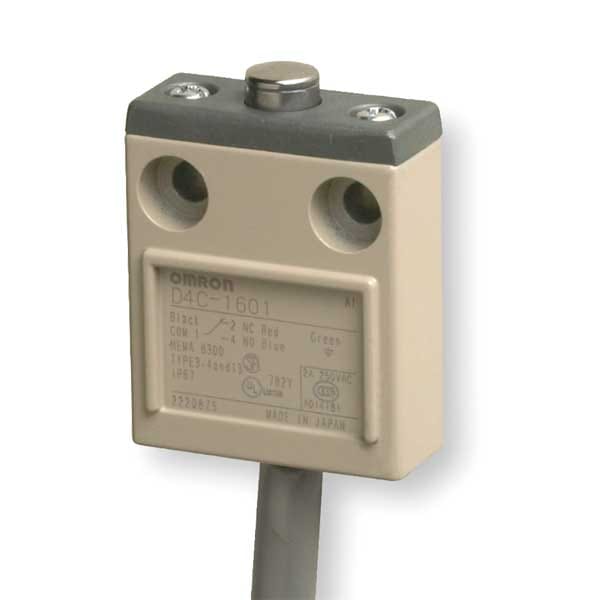

Limit Switch, Plunger, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1601
  • Zoro # G3439387
product price:
$
155.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D4C1601
Zoro #
G3439387
UPC #
-
Country of Origin
Japan
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
AC Contact Rating
5 A @ 250 V
NEMA Rating
13, 3, 4
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Spacing - Limit Switch
0.98 in
Movement
Top
Actuator Style (Limit Switch)
Plunger
Stem Thread - Limit Switch
No Stem
Contact Form - Limit Switch
SPDT
Electrical Connection
Pre-Wired Cable
Actuator Style
Plunger
Actuator Location
Top
Basic Actuator Style (Limit Switch)
Plunger
Standards
CCC, CE, CSA, EN, UL Listed
DC Contact Rating
4 A @ 30 V
Wiring Entry
3m Cable
Amps
5
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Operating Force
11.8 N-m
Operating Temp. Range
-14 Degrees to 158 Degrees F
Actuator Location (Limit Switch)
Top
Number of Poles
1
IP Rating
IP67
Voltage Rating
240V AC
Boot Sealed Actuator - Limit Switch
No
Contact Form
SPDT
Limit Switch Style
General Purpose Limit Switch
Series
D4C
Mounting Hole - Limit Switch
(2) 0.20 in dia
Body Style (Limit Switch)
Miniature
Body Material
Aluminum
Roller Material
Stainless Steel
Differential Travel
0.01 in
Action
Momentary
Operating Temperature - Minimum
14 Degrees F
Includes Actuator
Actuator Included
Mounting Hole Horizontal Center to Center Distance
25 mm
Operating Torque - Maximum
104.17 in-lb
Mounting Hole Vertical Center to Center Distance
25 mm
Operating Torque - Minimum
2.12 in-lb
Directional Movement
Linear
Body Configuration
Plug-In
Total Travel
0.19 in
NEMA Enclosure Rating
13, 3, 4
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Overtravel
0.12 in
Mounting Style
Surface
Number of Mounting Holes
2
Plunger Adjustability
Fixed
Pretravel
0.07 in
Operating Force - Maximum
11.77 N
Roller Adjustability
Fixed
Lamp Type
LED
Operating Force - Minimum
4.41 N
Roller Position
Top
Pre-Travel - Linear
1.8 mm
Switch Structure
SPDT
Total Travel - Linear
5 mm
Differential Travel - Linear
0.2 mm
Over Travel - Linear
3 mm

Description

Plunger Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection 9.8 ft Cable (SJT(O))
