  11. Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 2 Wires, Shielded

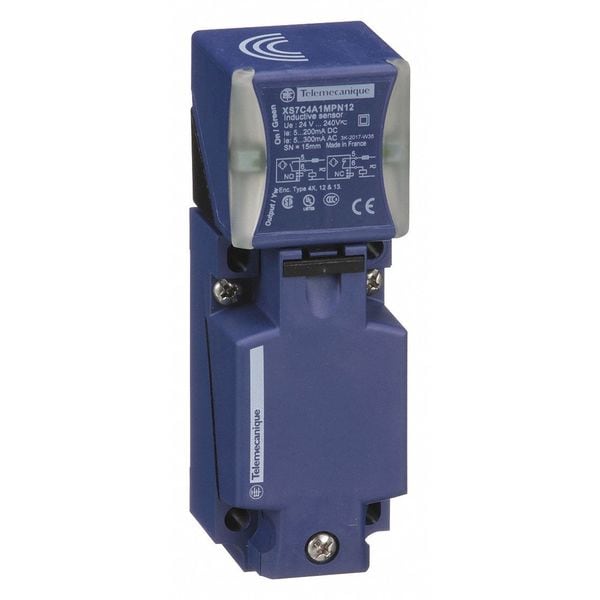

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 2 Wires, Shielded XS7C4A1MPN12 - main

Inductive, Rectangular Proximity Sensor, PBT, Bare Wire, 2 Wires, Shielded

  • Mfr # XS7C4A1MPN12

  • Zoro # G4623787

product price: $184.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
117 mm
Width
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS7C4A1MPN12
Zoro #
G4623787
UPC #
785901093626
Country of Origin
France

Dimensions

Length
117 mm
Width
40 mm
Depth
40 mm
Overall Width
40 mm
Overall Depth
40 mm
Overall Height
117 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
Screw Clamp Terminal
Proximity Sensor Operating Frequency
300 Hz
Max. Current Load
300/200ma
Standards
CCC, CE, CSA, RoHS, UL Listed
IP Rating
IP65, IP67, IP69K
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
5 Positions Turret Head Detection Face; Supply ON 1 LED Green; Output State 1 LED Yellow
Electrical Connection
Bare Wire
Differential Travel
3...15% of Sr
Shock Resistance
50 gn 11 msEN 60068-2-27
Maximum Voltage Drop
<5.5 V closed)
Maximum Delay Response
1.2 ms
Maximum Delay Recovery
1.8 ms
Supply Voltage Limits
20-264 V AC/DC
Maximum Delay First Up
7.5 ms
Application
general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Body Type
fixed
Storage Temp. Range
-40-85 °C
Series
XS7
Switching Capacity
5...200 mA DC || 5...300 mA AC
Body Material
PBT
AC Voltage Rating
24-240V AC
Load Current - Maximum
300 mA
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Screw Clamp Terminal
Operating Temperature - Maximum
158 Degrees F
Output Circuit Number of Wires
2
Output Circuit Contact Form
NO/NC
Sensing Distance - Maximum
15 mm
DC Voltage Rating
24-240V DC
Style
Inductive, Rectangular
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
25 Hz (AC), 50 Hz (DC)
Sensing Face Shielding
Shielded
Output Circuit Type
Programmable

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection Screw Clamp Terminal, Output Mode NO/NC, IP Rating IP65, IP67, IP69K, Case Material Plastic, Length 117 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300/200mA
