  11. Inductive, Rectangular Proximity Sensor, PBT, M12, 4 Wires, Unshielded

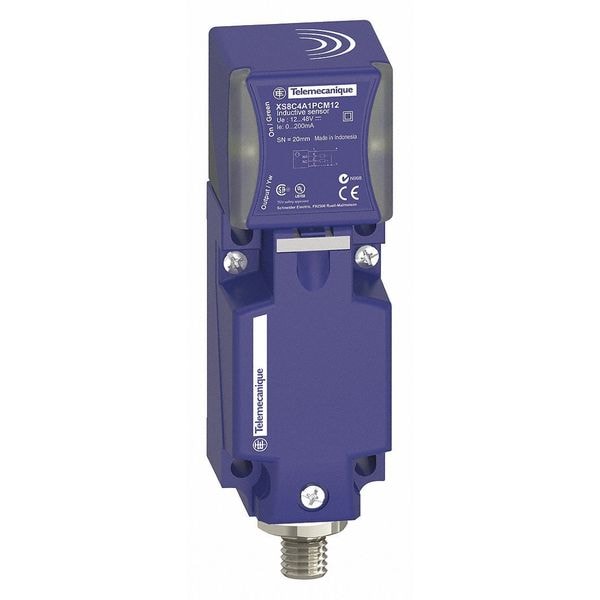

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, M12, 4 Wires, Unshielded XS8C4A4PCM12 - main

Inductive, Rectangular Proximity Sensor, PBT, M12, 4 Wires, Unshielded

  • Mfr # XS8C4A4PCM12

  • Zoro # G7044362

product price: $162.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 32 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Length
40 mm
Width
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS8C4A4PCM12
Zoro #
G7044362
UPC #
-
Country of Origin
France

Dimensions

Length
40 mm
Width
40 mm
Depth
117 mm
Overall Height
117 mm
Overall Width
40 mm
Overall Depth
40 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 32 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Electrical Connection
M12
Proximity Sensor Operating Frequency
200 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP65, IP67, IP69K
Standards
CCC, CE, CSA, E2, RoHS, UL Listed
Max. Current Load
200mA
Description/Special Features
Limit Switch Style Inductive Proximity Sensor
Electrical Connection
M12
Maximum Delay Response
1.4 ms
Body Type
fixed
Series
XS8
Application
mobile equipment; general purpose
Maximum Delay Recovery
2.5 ms
Maximum Delay First Up
7.5 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 msEN 60068-2-27
Differential Travel
3...15% of Sr
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-58 V DC
Switching Capacity
<= 200 mA overload and short-circuit protection
Body Material
PBT
Switching Frequency
200 Hz
Operating Temperature - Maximum
158 Degrees F
Load Current - Maximum
200 mA
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
12-48V DC
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
4
Sensing Face Shielding
Unshielded
Electrical Installation Type
Direct Connector
Number of Pins
4
Includes Indicator Lights
Indicator Lights Included
Output Circuit Contact Form
NO/NC
Sensing Distance - Maximum
40 mm
Style
Inductive, Rectangular
Output Circuit Type
PNP

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 12 to 48V DC, Unshielded, Proximity Sensor Operating Frequency 200 Hz, Proximity Sensor Output Circuit Type 4 Wire PNP, Max. Detecting Distance 40 mm, Proximity Sensor Electrical Connection M12, Output Mode NO/NC, IP Rating IP65, IP67, IP69K, Case Material PBT, Length 40 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
