  11. Inductive, Rectangular Proximity Sensor, Plastic, 2 m, Bare Wire, 2 Wires, Unshielded

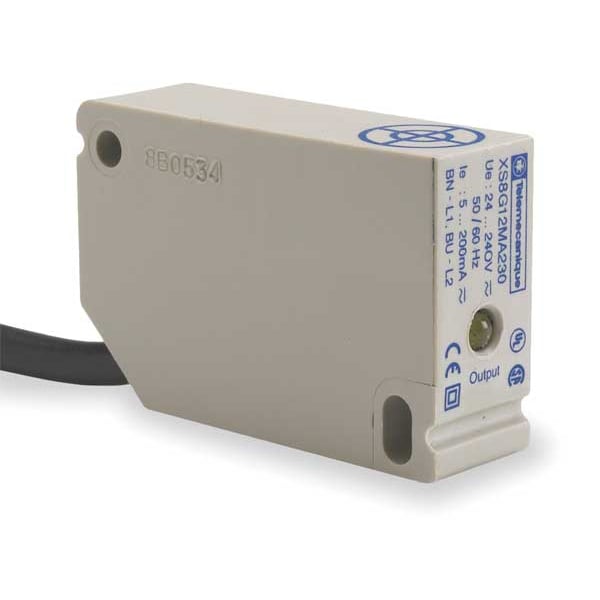

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, Plastic, 2 m, Bare Wire, 2 Wires, Unshielded XS8G12MA230 - main

Inductive, Rectangular Proximity Sensor, Plastic, 2 m, Bare Wire, 2 Wires, Unshielded

  • Mfr # XS8G12MA230

  • Zoro # G1775645

product price: $96.59
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
40 mm
Width
12 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8G12MA230
Zoro #
G1775645
UPC #
785901776727
Country of Origin
Indonesia

Dimensions

Length
40 mm
Width
12 mm
Depth
26 mm
Overall Height
26 mm
Overall Width
40 mm
Overall Depth
12 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Measurement Range
0 to 3.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
25 Hz AC/250 Hz DC
IP Rating
IP67
Standards
CCC, CE, CSA, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
200mA
Description/Special Features
LED Indicator
NEMA Rating
4X
Electrical Connection
Bare Wire
Body Type
fixed
Switching Capacity
5...200 mA
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<5.5 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
1 ms
Maximum Delay Recovery
2 ms
Application
general purpose
Series
XS8
Supply Voltage Limits
20-264 V AC/DC
Differential Travel
3...20% of Sr
Maximum Delay First Up
40 ms
Output Circuit Type
AC/DC-Type
Sensing Distance - Maximum
4 mm
DC Voltage Rating
24-210V DC
Output Circuit Contact Form
NO
Electrical Installation Type
Prewired Cable
Load Current - Maximum
200 mA
Sensing Face Shielding
Unshielded
Body Material
Plastic
Output Circuit Number of Wires
2
Style
Rectangular
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
158 Degrees F
AC Voltage Rating
24-240V AC
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
4X
Switching Frequency
25 Hz (AC), 250 Hz (DC)

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/250 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Plastic, Length 40 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
