This item is Discontinued.

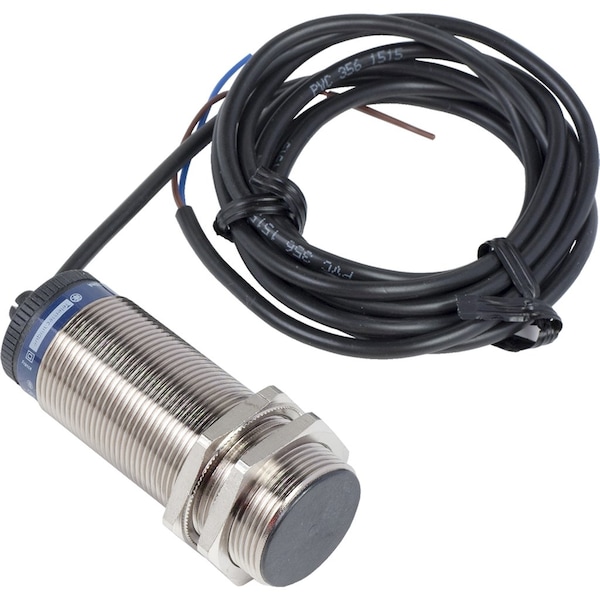

Telemecanique Sensors Inductive Sensor 264V 15Ma Xs +Options XSAV11801TF

Inductive Sensor 264V 15Ma Xs +Options (Discontinued)

  • Mfr # XSAV11801TF
  • Zoro # G0859778
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XSAV11801TF
Zoro #
G0859778
UPC #
785901769767
Country of Origin
France

Dimensions

Length
81 mm
Overall Height
81 mm
Cable Length
2 m

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Cylindrical M30
Measurement Range
8 to 15 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 210V DC; 24 to 240V AC
Proximity Sensor Output Circuit Type
2-Wire AC/DC
Output Mode
1 NC
Max. Detecting Distance
10 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 100 Hz
Standards
CCC, CE, CSA, REACH, RoHS, UL Listed
Operating Temp. Range
-40 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Red
IP Rating
IP67
Application
rotation monitoring
Features
18 months Warranty, Red LED Output Indication
Maximum Voltage Drop
<5.7 V closed)
Series
XSA
Switching Capacity
5...200 mA DC || 5...350 mA AC
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
20-264 V AC/DC
Body Type
fixed
Differential Travel
3...15% of Fr
Output Circuit Number of Wires
2
Output Circuit Contact Form
NC
Sensing Method
Inductive
Electrical Installation Type
Prewired Cable
Sensing Distance - Maximum
10 mm
Body Material
Brass
Operating Temperature - Minimum
-40 Degrees F
Switching Frequency
100 Hz
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Proximity Sensor, IP Rating IP67, Standards CCC, CE, CSA, REACH, RoHS, UL Listed
