This item is Discontinued.

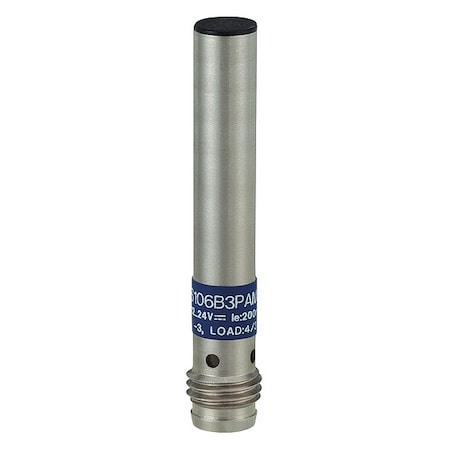

Telemecanique Sensors Inductive Sensor 36Vdc 200Ma Xs XS106B3PAM8

Inductive Sensor 36Vdc 200Ma Xs (Discontinued)

  • Mfr # XS106B3PAM8
  • Zoro # G0839496
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS106B3PAM8
Zoro #
G0839496
UPC #
-
Country of Origin
France

Dimensions

Length
42 mm
Overall Diameter
8 mm
Overall Height
42 mm

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Cylindrical 6.5 mm Plain
Measurement Range
0 to 2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
2.5 mm
Proximity Sensor Electrical Connection
Male Connector M8, 3 Pins
Basic Proximity Sensor Case Material
Stainless Steel 303; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 2500 Hz
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Electrical Connection
M8
IP Rating
IP65, IP67
Operating Temp. Range
-25 to 70 Degrees C
Standards
CE, CSA, REACH, RoHS, UL Listed
Maximum Delay First Up
10 ms
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-36 V DC
Maximum Delay Recovery
0.2 ms
Maximum Delay Response
0.2 ms
Application
general purpose
Series
XS1
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Material
Stainless Steel
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Maximum
3 mm
Load Current - Maximum
10 mA
Output Circuit Type
PNP
Output Circuit Contact Form
NO
Sensing Method
Inductive
Features
18 months Warranty, Yellow LED Output Indication
Switching Frequency
2,500 Hz

Description

Inductive Proximity Sensor, IP Rating IP65, IP67, Standards CE, CSA, REACH, RoHS, UL Listed
