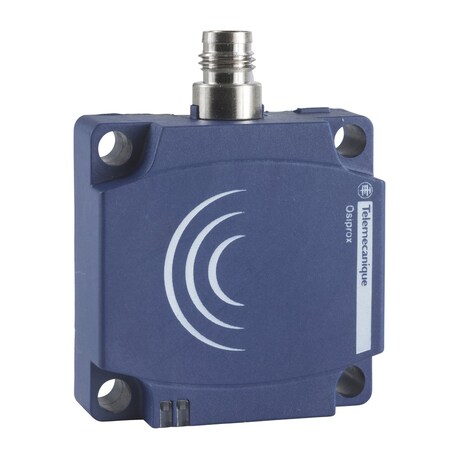

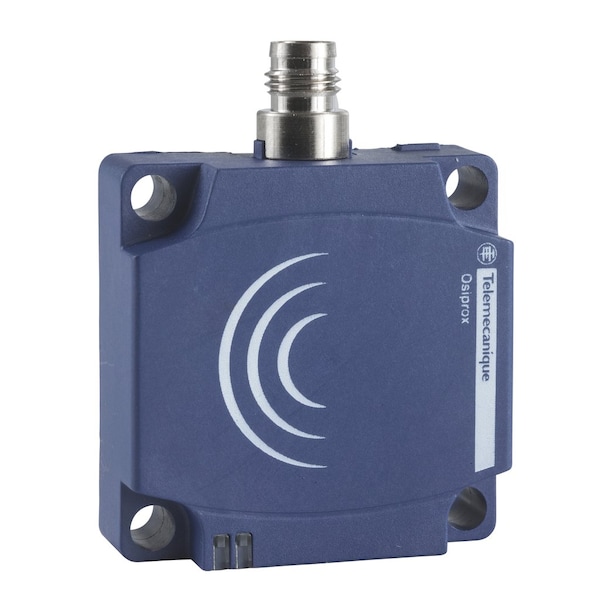

Inductive Sensor 36Vdc 200Ma Xs (Discontinued)
- Mfr # XS8C1A1NBM8
- Zoro # G1966443
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
XS8C1A1NBM8
Zoro #
G1966443
UPC #
-
Country of Origin
France
Dimensions
Overall Height
40 mm
Details
Item
Inductive Proximity Sensor
IP Rating
IP67
Electrical Connection
M8
Standards
CE, CSA, Ecolab, REACH, RoHS, UL Listed
Features
18 months Warranty
Sensing Method
Inductive
Output Circuit Contact Form
NC
Sensing Distance - Maximum
15 mm
Body Material
PBT
Switching Frequency
1,000 Hz
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
NPN
Load Current - Maximum
10 mA
Operating Temperature - Maximum
158 Degrees F
Description
Inductive Proximity Sensor, IP Rating IP67, Standards CE, CSA, Ecolab, REACH, RoHS, UL Listed
