This item is Discontinued.

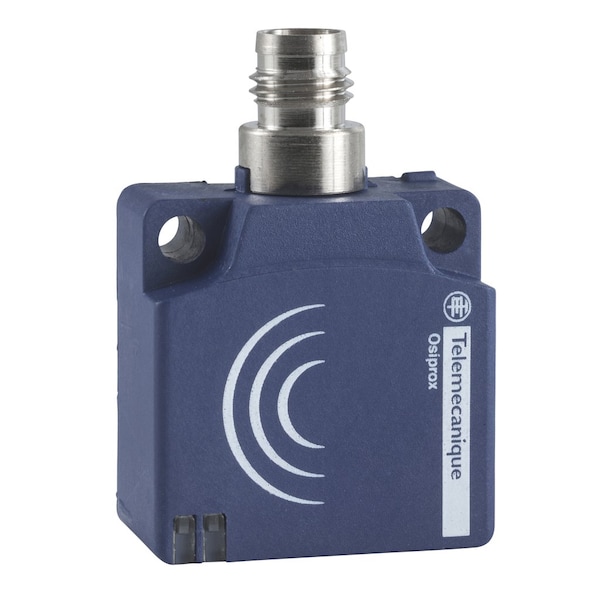

Telemecanique Sensors Inductive Sensor 36Vdc 200Ma Xs XS8E1A1PAM8

Inductive Sensor 36Vdc 200Ma Xs (Discontinued)

  • Mfr # XS8E1A1PAM8
  • Zoro # G3154588
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS8E1A1PAM8
Zoro #
G3154588
UPC #
785901930198
Country of Origin
France

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm
Overall Width
26 mm
Overall Height
38 mm
Overall Depth
13 mm

Details

Item
Inductive Rectangular Proximity Sensor
Proximity Sensor Style
Flat Form 26 x 26 x 13
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
10 mm flush mountable; 15 mm non flush mountable
Proximity Sensor Electrical Connection
Male Connector M8, 3 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
IP Rating
IP67
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face
Electrical Connection
M8
Standards
CE, CSA, Ecolab, UL Listed
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Maximum Delay Recovery
0.8 ms
Supply Voltage Limits
10-36 V DC
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
10 ms
Series
XS8
Body Type
fixed
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Maximum Delay Response
0.3 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Output Circuit Contact Form
NO
AC Voltage Rating
Not Rated
Includes Indicator Lights
No Indicator Lights Included
Body Material
PBT
Electrical Installation Type
Direct Connector
Sensing Distance - Maximum
15 mm
Sensing Face Shielding
Shielded
Switching Frequency
2,000 Hz
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
3
Number of Pins
3
Sensing Method
Inductive
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
PNP
Style
Rectangular

Description

Inductive Rectangular Proximity Sensor, IP Rating IP67, Standards CE, CSA, Ecolab, UL Listed
