  6. Inductive sensor XS1 M12-L61mm-brass

This item is Discontinued.

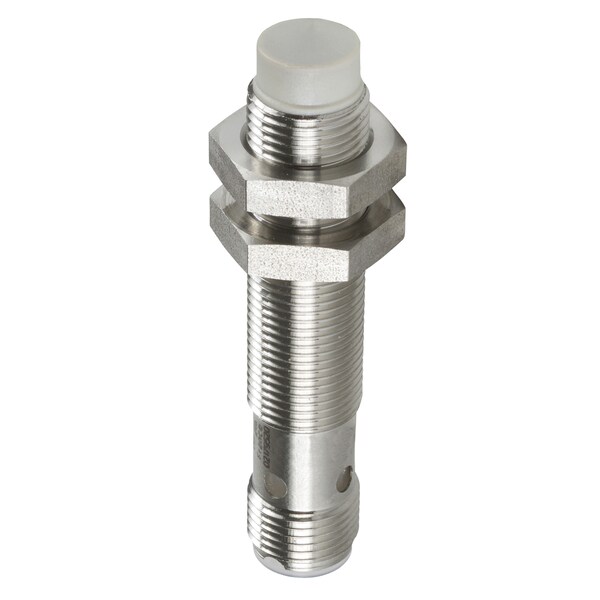

Telemecanique Sensors Inductive sensor XS1 M12-L61mm-brass XS1M12KP340D

Inductive sensor XS1 M12-L61mm-brass (Discontinued)

  • Mfr # XS1M12KP340D
  • Zoro # G3971253
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XS1M12KP340D
Zoro #
G3971253
UPC #
-
Country of Origin
France

Dimensions

Length
61 mm

Details

Item
Inductive sensor XS1 M12 - L61mm - brass
Proximity Sensor Style
Cylindrical M12
Measurement Range
0 to 1.6 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
4-Wire DC PNP and NPN
Output Mode
1 NO or 1 NC programmable
Max. Detecting Distance
2 mm
Standards
CSA; UL; CE Marked
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
IP Rating
IP67
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Maximum Delay Recovery
0.1 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2.6 V closed)
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
5 ms
Maximum Delay Response
0.1 ms
Differential Travel
1...15% of Sr
Switching Capacity
<= 200 mA overload and short-circuit protection
Series
XS1
Body Type
fixed

Description

Inductive sensor XS1 M12 - L61mm - brass
