This item is Discontinued.

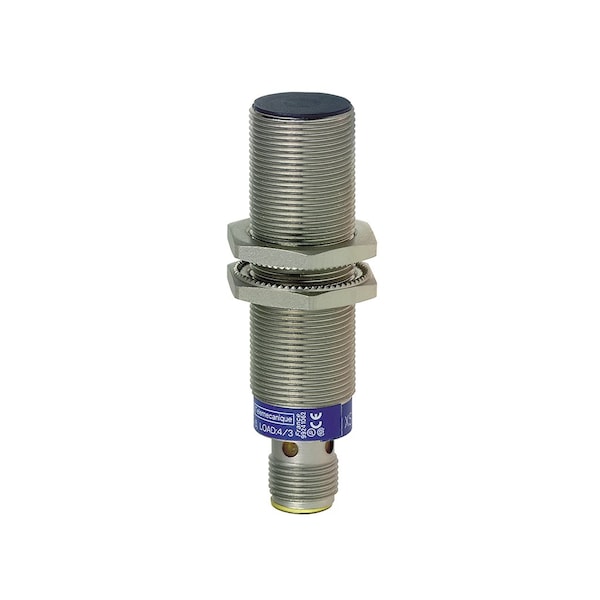

Telemecanique Sensors Inductive sensor XS1 M18-L72mm-brass XS1M18KP340D

Inductive sensor XS1 M18-L72mm-brass (Discontinued)

  • Mfr # XS1M18KP340D
  • Zoro # G3972671
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS1M18KP340D
Zoro #
G3972671
UPC #
-
Country of Origin
France

Dimensions

Length
72 mm

Details

Item
Inductive sensor XS1 M18 - L72mm - brass
Proximity Sensor Style
Cylindrical M18
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
4-Wire DC PNP and NPN
Output Mode
1 NO or 1 NC programmable
Max. Detecting Distance
5 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Standards
CSA; UL; CE Marked
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
IP Rating
IP67
Application
general purpose
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Switching Capacity
<= 200 mA overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Maximum Delay First Up
5 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<2.6 V closed)
Maximum Delay Recovery
0.35 ms
Supply Voltage Limits
10-36 V DC
Series
XS1
Differential Travel
1...15% of Sr
Maximum Delay Response
0.15 ms

Description

Inductive sensor XS1 M18 - L72mm - brass
