  11. Inductive sensor XS1 M30-PNP NONC-Fl
This item is Discontinued.

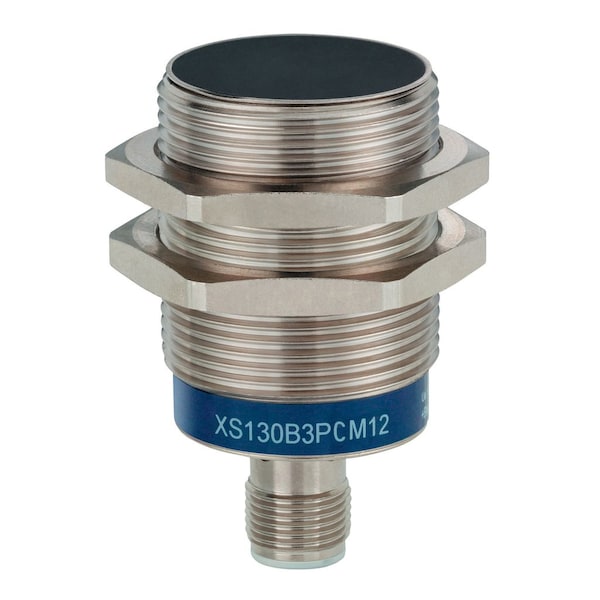

Telemecanique Sensors Inductive sensor XS1 M30-PNP NONC-Fl XS130B3PCM12

Inductive sensor XS1 M30-PNP NONC-Fl (Discontinued)

  • Mfr # XS130B3PCM12
  • Zoro # G3973301
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS130B3PCM12
Zoro #
G3973301
UPC #
-
Country of Origin
France

Dimensions

Length
55 mm

Details

Item
Inductive sensor XS1 M30 - PNP NONC - Fl
Proximity Sensor Style
Cylindrical M30
Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
4-Wire DC PNP
Output Mode
1 NO + 1 NC
Max. Detecting Distance
15 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 500 Hz
IP Rating
IP65, IP67, IP69K
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Standards
IEC 62061; EN/ISO 13849-1; E2; CSA; TÃœV; UL; SIL 2 EN/IEC 61508; PL = d EN/ISO 13849-1; SILCL 2 IEC 62061; CE Marked
Application
mobile equipment; general purpose
Maximum Delay First Up
5 ms
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Capacity
<= 200 mA overload and short-circuit protection
Series
XS1
Body Type
fixed
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Supply Voltage Limits
9-36 V DC
Maximum Delay Recovery
0.7 ms
Maximum Delay Response
0.3 ms

Description

Inductive sensor XS1 M30 - PNP NONC - Fl
