  11. Inductive sensor XS1 M8-L61mm-stainl

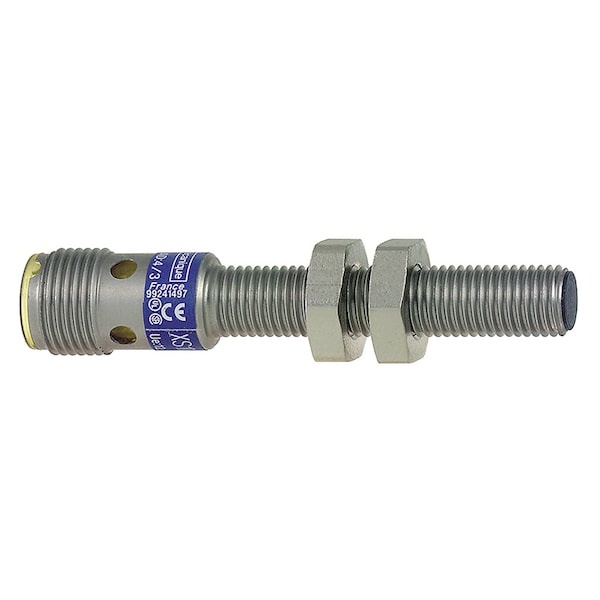

Telemecanique Sensors Inductive sensor XS1 M8-L61mm-stainl XS1M08PC410D - main

Inductive sensor XS1 M8-L61mm-stainl

  • Mfr # XS1M08PC410D

  • Zoro # G3575351

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Material
stainless steel
Length
62 mm
Size
62 mm
Sensor Design
cylindrical M8
Front Material
PPS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS1M08PC410D
Zoro #
G3575351
UPC #
-
Country of Origin
France

Dimensions

Length
62 mm
Size
62 mm
Threaded Length
40 mm

Details

Item
Inductive sensor XS1 M8 - L61mm - stainl
Material
stainless steel
Sensor Design
cylindrical M8
Front Material
PPS
Maximum Delay Response
0.1 ms
Electrical Connection
male connector M12, 4 pins
Sensor Type
inductive proximity sensor
Supply Voltage Limits
10-36 V DC
Status Led
output state 1 LED yellow)
Discrete Output Function
1 NO + 1 NC
Thread Type
M8 x 1
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Maximum Delay First Up
5 ms
Maximum Voltage Drop
<2 V closed)
Differential Travel
1...15% of Sr
Series Name
general purpose
Ambient Air Temperature For Operation
-25-70°C
Wiring Technique
4-wire
Output Circuit Type
DC
Detection Face
frontal
Type Of Output Signal
discrete
[Sn] Nominal Sensing Distance
1.5 mm
Marking
CE
Enclosure Material
stainless steel 303
Ambient Air Temperature For Storage
-40-85°C
Detector Flush Mounting Acceptance
flush mountable
Current Consumption
0...10 mA no-load
Sensor Name
XS1
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP67 conforming to IEC 60529
Discrete Output Type
PNP
Operating Zone
0-1.2 mm
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Switching Frequency
<= 5000 Hz
Product Certifications
CSA || UL
Maximum Delay Recovery
0.1 ms
Body Type
fixed
Switching Capacity In Ma
<= 200 mA overload and short-circuit protection

Description

Inductive sensor XS1 M8 - L61mm - stainl
