  6. Internal Thread Connector, 125VAC/150VDC

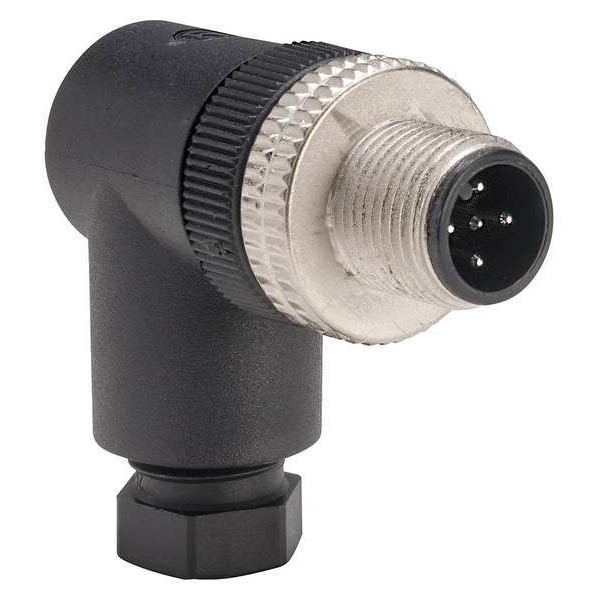

Telemecanique Sensors Internal Thread Connector, 125VAC/150VDC XZCC12MCM50B - main

Internal Thread Connector, 125VAC/150VDC

  • Mfr # XZCC12MCM50B

  • Zoro # G3026460

product price:  $12.85
/ea

Key Features

End 1 Number of Pins
5
Cable Length
0.12" to 0.24"
Jacket Color
Black
Wire Size
18 AWG
IP Rating
IP67
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCC12MCM50B
Zoro #
G3026460
UPC #
785901634041
Country of Origin
Czechia

Dimensions

Cable Length
0.12" to 0.24"
Wire Size
18 AWG
Thread Size
M12
Cable Outside Diameter
20.1 mm
Flange Size
0.79 in

Details

Item
Connector
End 1 Number of Pins
5
Jacket Color
Black
IP Rating
IP67
Color
Black and Silver
Max. Amps
3A
End 1 Thread
M12
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping; Mercury Free
Number of Conductors
5
Number of Pins
5
End 1 Keyway
Single
Max. Current
3 A
Max. Voltage
30VAC/36VDC
Plug or Connector Type
Male
Body Material
Metal
End 1 Connection Type
Plug
Plug End
90 Degrees
End 2 Gender and Plug End
Screw Terminal
Threads
M12
Standards
CSA Certified, IEC, UL Listed
Temp. Range
-40 Degrees to 85 Degrees C
End 2 Connection Type
Bare Wire
Keyway
Single
End 1 Gender and Plug End
Male Right Angle
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
30V AC, 36V DC
Connector Orientation
90 Degrees Angled
Nominal Current
3 A
Mounting Style
Male Thread
Connector Body Type
Pin
Housing Material
Plastic
Number of Poles
5
Locking Style
Screw Connection
Insulation Resistance
1,000,000 megaohm
Connection Type
Cable Assembly
Maximum Operating Temperature
185 Degrees F
Construction
One-Piece
Number of Contacts
5 Pin
Maximum Contact Resistance
8 milliOhm
Enclosure Material
Plastic
Minimum Insulating Resistance
1000 GΩ
Accessory / Separate Part Category
cabling accessories
Cable Connection
screw terminal 0.75 mm² 3-6 mm
Ambient Air Temperature For Operation
-40-85°C
Ip Degree Of Protection
IP67
Contact Resistance
8000µOhm
Electrical Connection
elbowed male connector M12, 5 pins
Cable Connector Fixing
screw-on
[Ue] Rated Operational Voltage
30 V AC || 36 V DC
Collar Material
metal
Status Led
without
Line Rated Current
3A
Cable Gland Type
Pg 7
Accessory / Separate Part Type
connector

Description

External Thread Connector, Mounting Style Male Thread, Number of Poles 5, Connection Type Cable Assembly, Construction One-Piece, Thread Size M12, Voltage Rating 30V AC, 36V DC, Nominal Voltage 30V AC, 36V DC, Nominal Current 3 A, Locking Style Screw Connection, Flange Size 0.79 in, Housing Material Plastic, Connector Body Type Pin, Cable Outside Diameter 20.1 mm, Connector Orientation 90 Degrees Angled, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
