  6. Inductive sensor XS5 M30-L62mm-brass

This item is Discontinued.

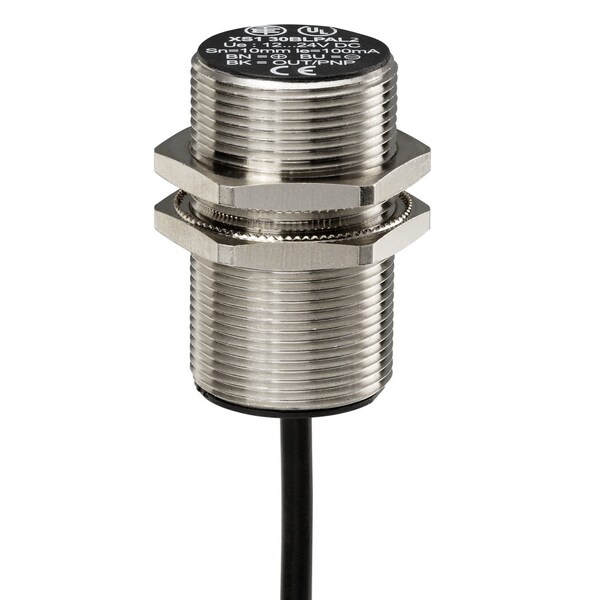

Telemecanique Sensors Inductive sensor XS5 M30-L62mm-brass XS530BLPAL5

Inductive sensor XS5 M30-L62mm-brass (Discontinued)

  • Mfr # XS530BLPAL5
  • Zoro # G800899337
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS530BLPAL5
Zoro #
G800899337
UPC #
-
Country of Origin
France

Dimensions

Length
62 mm

Details

Item
Inductive sensor XS5 M30 - L62mm - brass
Proximity Sensor Style
Cylindrical M30
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
10 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Standards
UL; CSA; CE Marked
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Maximum Voltage Drop
<2 V closed)
Differential Travel
1...15% of Sr
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Body Type
fixed
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
0.7 ms
Series
XS5
Supply Voltage Limits
10-58 V DC
Maximum Delay First Up
10 ms

Description

Inductive sensor XS5 M30 - L62mm - brass
