  11. Inductive sensor XS6 M12-L53mm-Brss
This item is Discontinued.

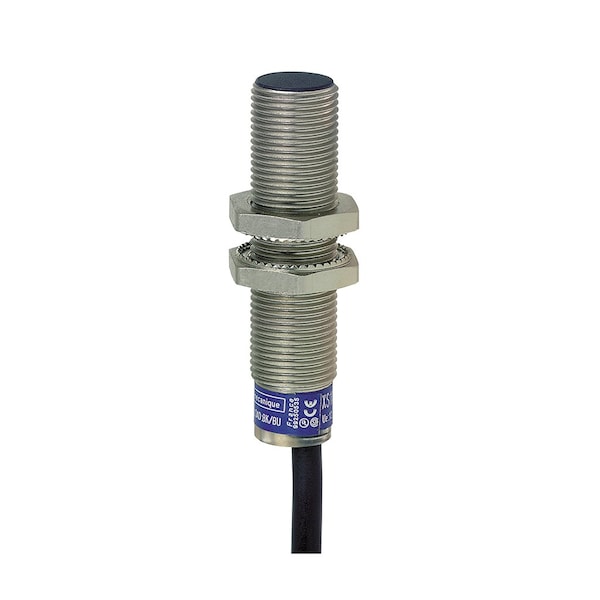

Telemecanique Sensors Inductive sensor XS6 M12-L53mm-Brss XS612B1DAL2

Inductive sensor XS6 M12-L53mm-Brss (Discontinued)

  • Mfr # XS612B1DAL2
  • Zoro # G3975858
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS612B1DAL2
Zoro #
G3975858
UPC #
-
Country of Origin
France

Dimensions

Length
54 mm

Details

Item
Inductive sensor XS6 M12 - L53mm - Brss
Proximity Sensor Style
Cylindrical M12
Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
2-Wire DC
Output Mode
1 NO
Max. Detecting Distance
4 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz DC
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Operating Temp. Range
-25 to 70 Degrees C
Standards
UL; CSA; CE Marked
Application
general purpose
Supply Voltage Limits
10-58 V DC
Storage Temp. Range
-40-85 °C
Differential Travel
1...15% of Sr
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Series
XS6
Maximum Delay First Up
10 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.3 ms
Maximum Delay Recovery
0.3 ms
Maximum Voltage Drop
<4 V closed)

Description

Inductive sensor XS6 M12 - L53mm - Brss
