  6. Inductive sensor XS6 M12-L55mm-Brss

This item is Discontinued.

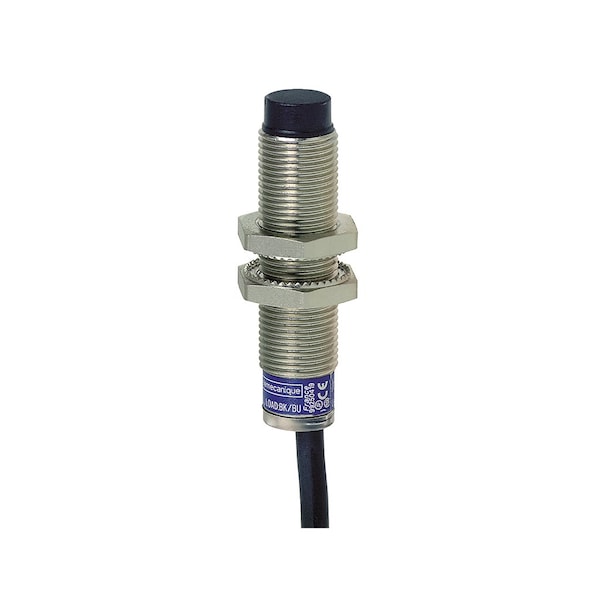

Telemecanique Sensors Inductive sensor XS6 M12-L55mm-Brss XS612B4PAL5

Inductive sensor XS6 M12-L55mm-Brss (Discontinued)

  • Mfr # XS612B4PAL5
  • Zoro # G500899330
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS612B4PAL5
Zoro #
G500899330
UPC #
-
Country of Origin
France

Dimensions

Length
54 mm

Details

Item
Inductive sensor XS6 M12 - L55mm - Brss
Proximity Sensor Style
Cylindrical M12
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
7 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 2500 Hz DC
Operating Temp. Range
-25 to 70 Degrees C
Standards
UL; CSA; E2; CE Marked
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
IP Rating
IP68, IP69K
Application
mobile equipment; general purpose
Maximum Delay Recovery
0.2 ms
Body Type
fixed
Differential Travel
1...15% of Sr
Maximum Delay Response
0.2 ms
Maximum Delay First Up
10 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Voltage Drop
<2 V closed)
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS6
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Supply Voltage Limits
10-58 V DC
Storage Temp. Range
-40-85 °C

Description

Inductive sensor XS6 M12 - L55mm - Brss
