This item is Discontinued.

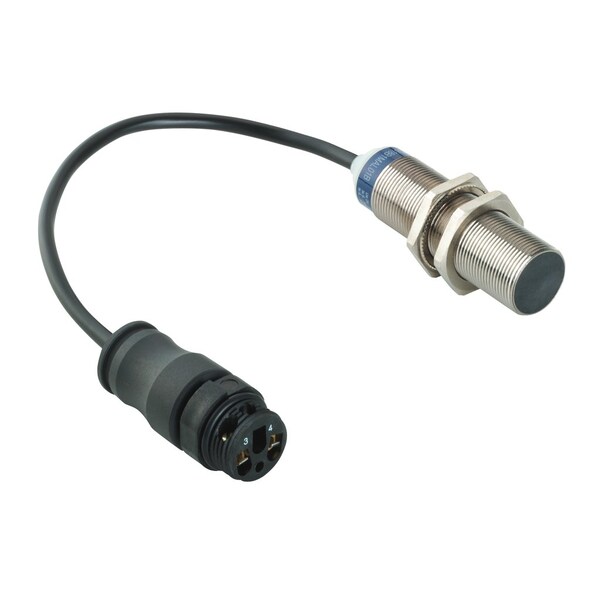

Telemecanique Sensors Inductive sensor XS6 M18-L62mm-brass XS618B1MAL01B

Inductive sensor XS6 M18-L62mm-brass (Discontinued)

  • Mfr # XS618B1MAL01B
  • Zoro # G3976381
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS618B1MAL01B
Zoro #
G3976381
UPC #
-
Country of Origin
France

Dimensions

Length
62 mm

Details

Item
Inductive sensor XS6 M18 - L62mm - brass
Proximity Sensor Style
Cylindrical M18
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Output Circuit Type
2-Wire AC/DC
Output Mode
1 NO
Max. Detecting Distance
8 mm
Proximity Sensor Electrical Connection
Remote Male Connector Screw-Clamp Terminals
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz DC; Less than Or Equal to 25 Hz AC
Standards
CE Marked
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Application
general purpose
Differential Travel
1...15% of Sr
Series
XS6
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
5...200 mA DC || 5...300 mA AC
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.5 ms
Maximum Delay Recovery
0.5 ms
Maximum Delay First Up
25 ms
Supply Voltage Limits
20-264 V AC/DC
Body Type
fixed
Maximum Voltage Drop
<5.5 V
Shock Resistance
50 gn 11 ms IEC 60068-2-27

Description

Inductive sensor XS6 M18 - L62mm - brass
