  6. Inductive sensor XS6 M30-L63mm-brass

This item is Discontinued.

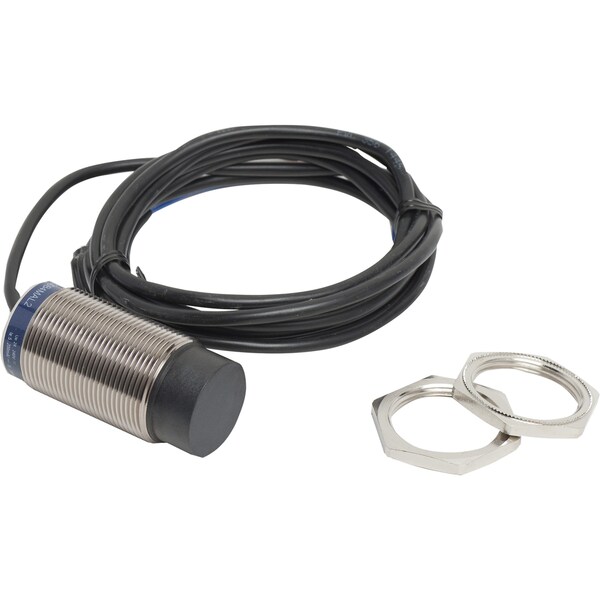

Telemecanique Sensors Inductive sensor XS6 M30-L63mm-brass XS630B4MAL2

Inductive sensor XS6 M30-L63mm-brass (Discontinued)

  • Mfr # XS630B4MAL2
  • Zoro # G3973189
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS630B4MAL2
Zoro #
G3973189
UPC #
-
Country of Origin
France

Dimensions

Length
66 mm

Details

Item
Inductive sensor XS6 M30 - L63mm - brass
Proximity Sensor Style
Cylindrical M30
Measurement Range
15 to 40 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Output Circuit Type
2-Wire AC/DC
Output Mode
1 NO
Max. Detecting Distance
22 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 25 Hz AC; Less than Or Equal to 300 Hz DC
Standards
CSA; UL; CE Marked
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68, IP69K
Application
general purpose
Differential Travel
1...15% of Sr
Switching Capacity
5...200 mA DC || 5...300 mA AC
Maximum Delay First Up
30 ms
Series
XS6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<5.5 V closed)
Maximum Delay Recovery
2 ms
Body Type
fixed
Maximum Delay Response
0.5 ms
Supply Voltage Limits
20-264 V AC/DC

Description

Inductive sensor XS6 M30 - L63mm - brass
