  6. Inductive sensor XS7 26x26x13-PBT-Sn

This item is Discontinued.

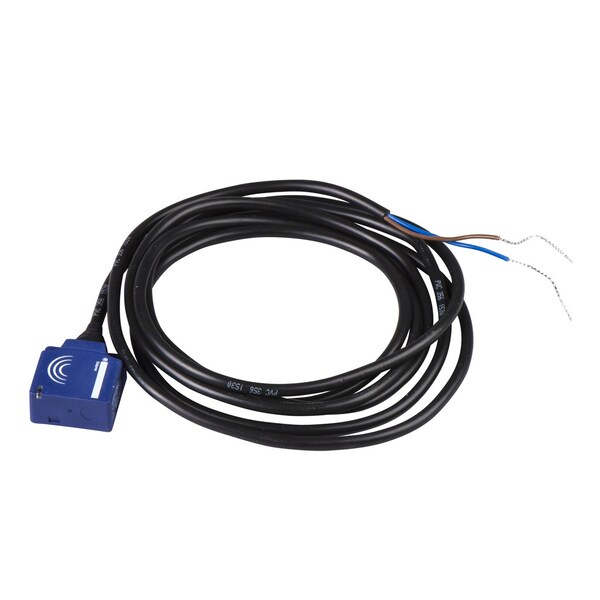

Telemecanique Sensors Inductive sensor XS7 26x26x13-PBT-Sn XS7E1A1NBL2

Inductive sensor XS7 26x26x13-PBT-Sn (Discontinued)

  • Mfr # XS7E1A1NBL2
  • Zoro # G3976031
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS7E1A1NBL2
Zoro #
G3976031
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm

Details

Item
Inductive sensor XS7 26x26x13 - PBT - Sn
Proximity Sensor Style
Flat Form 26 x 26 x 13
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC NPN
Output Mode
1 NC
Max. Detecting Distance
8 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
IP Rating
IP68
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Operating Temp. Range
-25 to 70 Degrees C
Standards
CSA; C-tick; Ecolab; UL; CE Marked
Max. Current Load
10 mA
Application
general purpose
Maximum Delay First Up
10 ms
Maximum Delay Recovery
6 ms
Supply Voltage Limits
10-36 V DC
Series
XS7
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
2 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Maximum Voltage Drop
<2 V closed)
Body Type
fixed
Differential Travel
1...15% of Sr

Description

Inductive sensor XS7 26x26x13 - PBT - Sn
