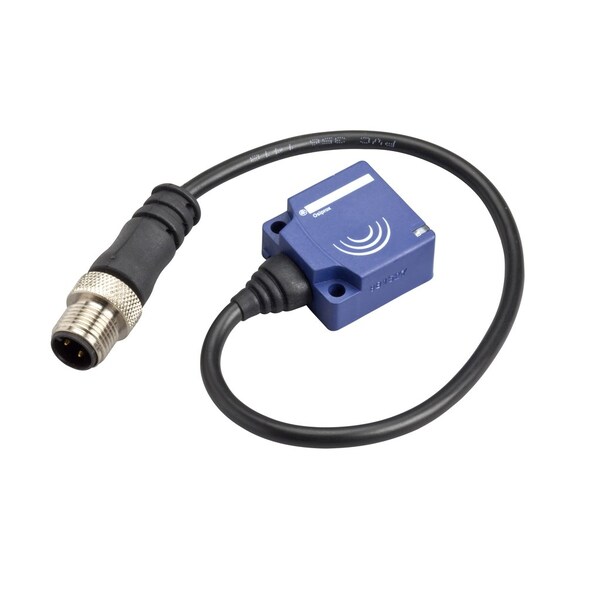

Telemecanique Sensors Inductive sensor XS7 26x26x13-PBT-Sn XS7E1A1PAL01M12

Inductive sensor XS7 26x26x13-PBT-Sn (Discontinued)

  • Mfr # XS7E1A1PAL01M12
  • Zoro # G100899235
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS7E1A1PAL01M12
Zoro #
G100899235
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm

Details

Item
Inductive sensor XS7 26x26x13 - PBT - Sn
Proximity Sensor Style
Flat Form 26 x 26 x 13
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
8 mm
Proximity Sensor Electrical Connection
Remote Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
IP Rating
IP67
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Standards
CSA; C-tick; Ecolab; UL; CE Marked
Application
general purpose
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Maximum Voltage Drop
<2 V closed)
Series
XS7
Maximum Delay Recovery
6 ms
Supply Voltage Limits
10-36 V DC
Storage Temp. Range
-40-85 °C
Maximum Delay Response
2 ms
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Differential Travel
1...15% of Sr

Description

Inductive sensor XS7 26x26x13 - PBT - Sn
