  6. Inductive sensor XS8 40x40x15-PBT-Sn

This item is Discontinued.

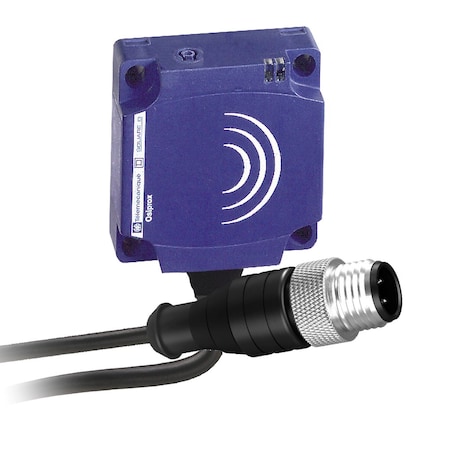

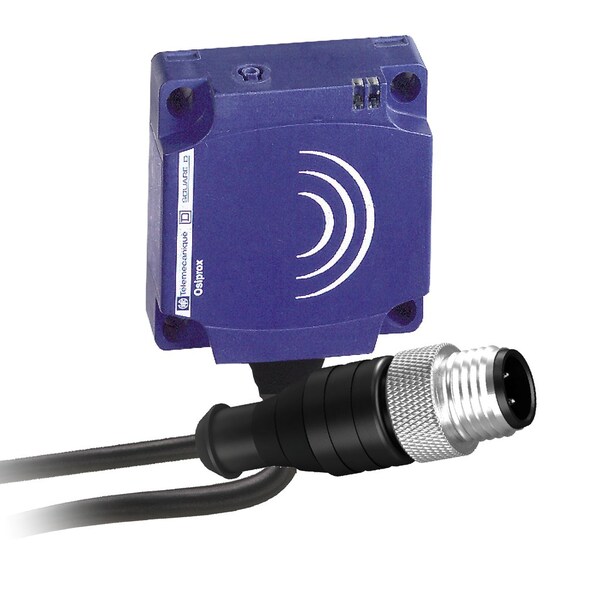

Telemecanique Sensors Inductive sensor XS8 40x40x15-PBT-Sn XS8C1A1PAL01M12

Inductive sensor XS8 40x40x15-PBT-Sn (Discontinued)

  • Mfr # XS8C1A1PAL01M12
  • Zoro # G3977249
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS8C1A1PAL01M12
Zoro #
G3977249
UPC #
-
Country of Origin
France

Dimensions

Length
40 mm
Width
40 mm
Depth
15 mm

Details

Item
Inductive sensor XS8 40x40x15 - PBT - Sn
Proximity Sensor Style
Flat Form 40 x 40 x 15
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
15 mm flush mountable; 25 mm non flush mountable
Proximity Sensor Electrical Connection
Remote Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Description/Special Features
Frontal Detection Face
Standards
CSA; Ecolab; UL; CE Marked
IP Rating
IP67
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Application
general purpose
Differential Travel
1...15% of Sr
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS8
Maximum Delay First Up
10 ms
Supply Voltage Limits
10-36 V DC
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Maximum Delay Recovery
0.8 ms
Maximum Delay Response
0.3 ms

Description

Inductive sensor XS8 40x40x15 - PBT - Sn
