  6. Inductive sensor XS8 80x80x26-PBT-Sn

This item is Discontinued.

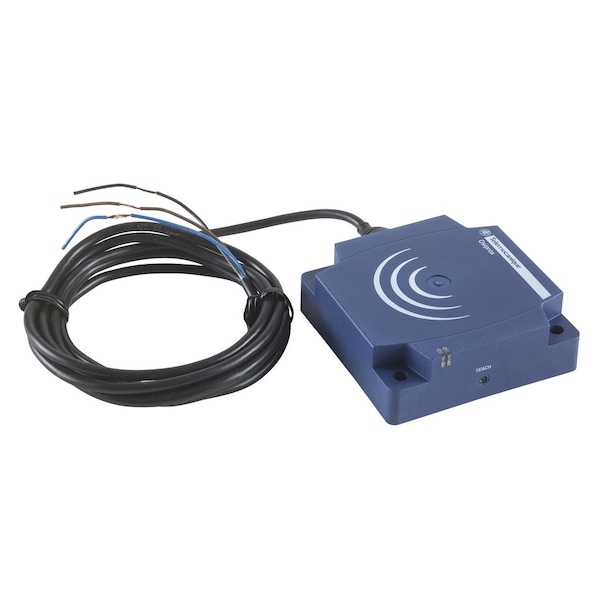

Telemecanique Sensors Inductive sensor XS8 80x80x26-PBT-Sn XS8D1A1PBL2

Inductive sensor XS8 80x80x26-PBT-Sn (Discontinued)

  • Mfr # XS8D1A1PBL2
  • Zoro # G3982374
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8D1A1PBL2
Zoro #
G3982374
UPC #
-
Country of Origin
France

Dimensions

Length
80 mm
Width
80 mm
Depth
26 mm

Details

Item
Inductive sensor XS8 80x80x26 - PBT - Sn
Proximity Sensor Style
Flat Form 80 x 80 x 26
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NC
Max. Detecting Distance
40 mm flush mountable; 60 mm non flush mountable
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 150 Hz
Max. Current Load
10 mA
IP Rating
IP68
Description/Special Features
Frontal Detection Face
Operating Temp. Range
-25 to 70 Degrees C
Standards
CSA; Ecolab; UL; CE Marked
Application
general purpose
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Series
XS8
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
6 ms
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.3 ms
Maximum Voltage Drop
<2 V closed)
Maximum Delay First Up
10 ms
Body Type
fixed

Description

Inductive sensor XS8 80x80x26 - PBT - Sn
