DC Contact Rating
0.1 A @ 250 V
Electrical Connection
Screw Clamp Terminals
AC Contact Rating
1.5 A @ 240 V
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Compatible with Series
XCKT
Number of Mounting Holes
4
NEMA Enclosure Rating
1, 12, 4
Indicating Light
No Indicating Light Included
Mounting Hole Horizontal Center to Center Distance
21 mm, 41 mm
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Body Configuration
Non Plug-In
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
2 NC
Ambient Air Temperature For Operation
-25-70°C
Associated Head
ZCE05 || ZCEH2 || ZCE14 || ZCE62 || ZCE02 || ZCE64 || ZCE65 || ZCE01 || ZCE28 || ZCE06 || ZCE66 || ZCE21 || ZCE24 || ZCE27 || ZCE11 || ZCE08 || ZCEH0 || ZCE13 || ZCE63 || ZCE29 || ZCE10 || ZCE67 || ZCE07
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Product Compatibility
XCKT
Contacts Material
silver plated contacts
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Cable Entry
2 entries tapped for Pg 11 cable gland 4-8 mm
Product Or Component Type

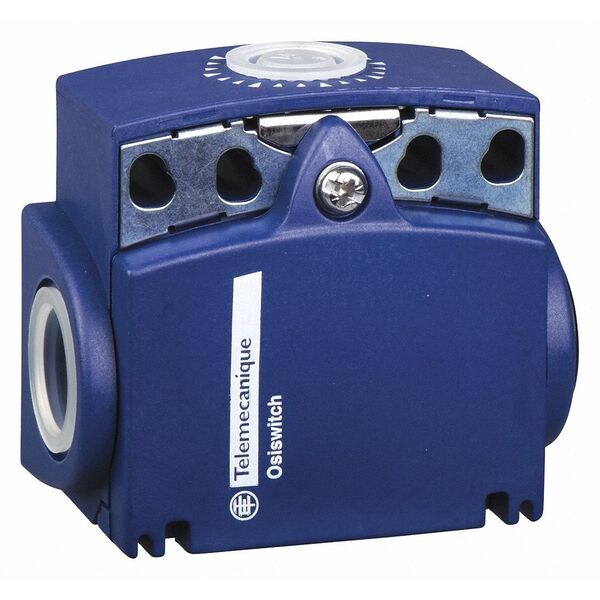

limit switch body
Series Name
Standard compact
Short-Circuit Protection
10 A cartridge fuse gG
Contacts Insulation Form
Zb
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Minimum Actuation Speed
6 m/s
Contact Operation
slow-break, simultaneous
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Manufacturer Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible with Mfr. Model No.
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use with Mfr Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
For Use With Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Pump Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Compatible Mfr. Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
