AC Contact Rating
3 A @ 50 V
DC Contact Rating
0.22 A @ 50 V
Electrical Connection
5-Pin M12 Male Connector
IP Rating
IP66, IP67, IP68
Electrical Durability
5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Type And Composition
1 NC + 1 NO
Contacts Material
silver plated contacts
Maximum Resistance Across Terminals
25 mOhm IEC 60255-7 category 3
Series Name
standard format
[Ie] Rated Operational Current
0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A
Product Compatibility
XCMD
Associated Head
ZCE66 || ZCEF2 || ZCE14 || ZCE62 || ZCE06 || ZCE09 || ZCE21 || ZCE28 || ZCE27 || ZCE64 || ZCE65 || ZCEG1 || ZCE10 || ZCE11 || ZCE01 || ZCE29 || ZCE67 || ZCE24 || ZCE07 || ZCE13 || ZCE02 || ZCE63 || ZCEF0 || ZCE08
Product Or Component Type

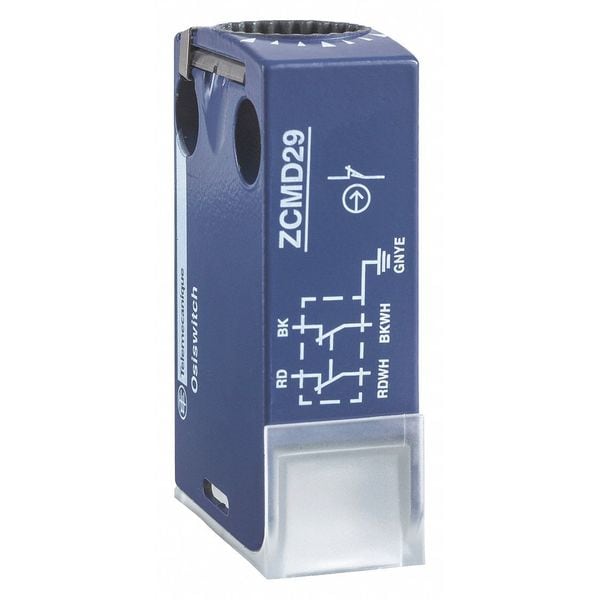

limit switch body
[Ithe] Conventional Enclosed Thermal Current
4 A
Minimum Actuation Speed
0.01 m/min
[Ui] Rated Insulation Voltage
60 V 3)IEC 60947-5-1
Contacts Insulation Form
Zb
Short-Circuit Protection
4 A cartridge fuse gG
[Uimp] Rated Impulse Withstand Voltage
0.8 kV IEC 60664 || 0.8 kV IEC 60947-1
Ambient Air Temperature For Storage
-40-70°C
Contact Operation
snap action
Body Configuration
Non Plug-In
NEMA Enclosure Rating
1, 12, 13, 2, 4
Mounting Hole Horizontal Center to Center Distance
21 mm
Number of Mounting Holes
2
Indicating Light
No Indicating Light Included
Compatible with Series
XCMD
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEF0, ZCEF2, ZCEG1
