  15. Limit Switch Body, 1NO/1NC, 3A at 240V

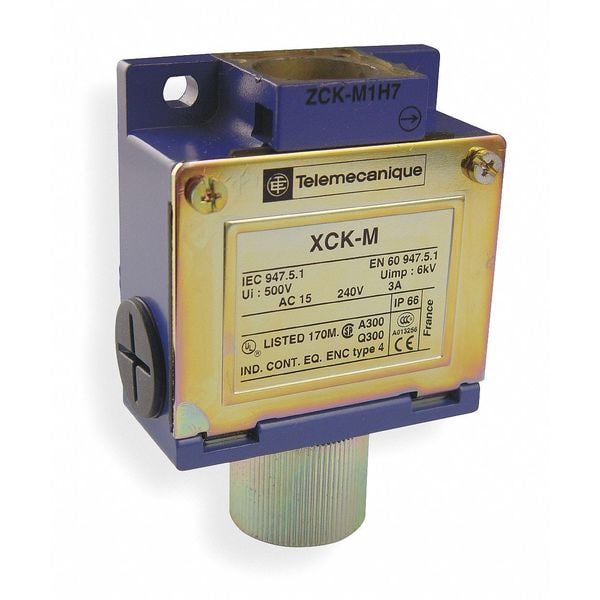

Telemecanique Sensors Limit Switch Body, 1NO/1NC, 3A at 240V ZCKM1 - main

Limit Switch Body, 1NO/1NC, 3A at 240V

  • Mfr # ZCKM1

  • Zoro # G3009483

product price: $70.39
/ea

Key Features

For Use With
XCKM Series Limit Switches
IP Rating
IP66
Standards
CE, CSA, EN/IEC 60947-5-1, UL Listed
NEMA Rating
1, 12, 2, 3, 4
Operating Temp.
-13 Degrees to 158 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKM1
Zoro #
G3009483
UPC #
785901190561
Country of Origin
Multiple

Dimensions

Width
64 mm
Height
64-64 mm
Depth
30 mm
Overall Height
2.52 in
Overall Width
2.52 in
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch Body
For Use With
XCKM Series Limit Switches
IP Rating
IP66
Standards
CE, CSA, EN/IEC 60947-5-1, UL Listed
NEMA Rating
1, 12, 2, 3, 4
Operating Temp.
-13 Degrees to 158 Degrees F
AC Contact Rating
3 A @ 240 V
Electrical Connection
Screw Clamp Terminals
Contact Form
1NO/1NC
Body Material
metal
DC Contact Rating
0.27 A @ 250 V
Material
Metal
Ambient Air Temperature For Storage
-40-70°C
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Cable Entry
3 entries tapped for Pg 11 cable gland
Contact Operation
snap action
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Device Short Name
ZCKM
Number Of Poles
2
Product Or Component Type
limit switch body
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Contacts Material
silver plated contacts
Ambient Air Temperature For Operation
-25-70°C standard environment
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Positive Opening
with
Series Name
standard format
Number Of Steps
1 1 position
Product Compatibility
XCKM
Environmental Characteristic
standard environment
Ip Degree Of Protection
IP66
Body Type
fixed
Short-Circuit Protection
10 A cartridge fuse gG
[Ithe] Conventional Enclosed Thermal Current
10 A
Contacts Type And Composition
1 NC + 1 NO
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Ik Degree Of Protection
IK05
Minimum Actuation Speed
0.01 m/min
Associated Head
ZCKD08 || ZCKD06 || ZCKD219 || ZCKD41 || ZCKD02 || ZCKD81 || ZCKD05 || ZCKD109 || ZCKD16 || ZCKD23 || ZCKD91 || ZCKD029 || ZCKD17 || ZCKD59 || ZCKD15 || ZCKD21 || ZCKD239 || ZCKD10
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Mounting Hole Horizontal Center to Center Distance
41 mm
Operating Temperature - Maximum
158 Degrees F
Compatible with Manufacturer Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Body Configuration
Non Plug-In
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 2, 3, 4
Indicating Light
No Indicating Light Included
Compatible with Series
XCKM
Operating Temperature - Minimum
-13 Degrees F
Compatible Manufacturer Part Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Manufacturer Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible with Manufacturer Model No.
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible with Mfr. Model No.
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
For Use with Mfr Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
For Use With Mfr. Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Pump Manufacturer Part Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91
Compatible Mfr. Model Number
ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91

Description

Limit Switch Body, Contact Form 1NO/1NC, For Use With XCKM Series Limit Switches, AC Contact Rating 3 A @ 240 V, NEMA Rating 1, 12, 2, 3, 4, Electrical Connection Screw Clamp Terminals, IP Rating IP66, Operating Temp. -13 Degrees to 158 Degrees F, Standards CE, CSA, EN/IEC 60947-5-1, UL Listed
